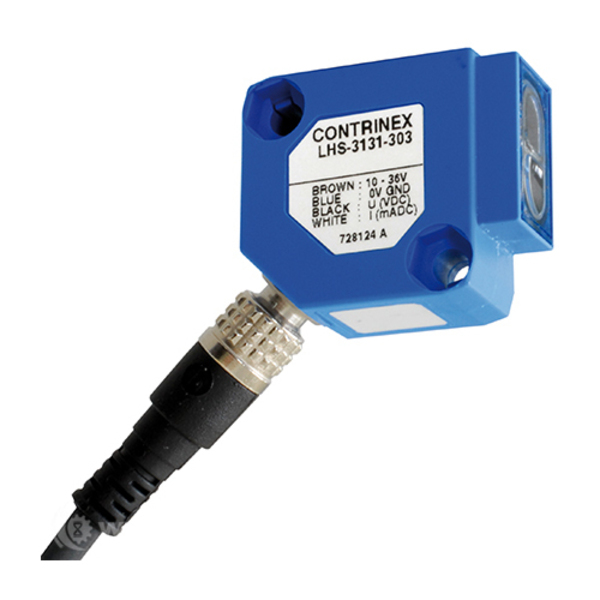

CONTRINEX LHS-3131-303 COMPACT PHOTOELECTRIC SENSOR
Starting At: $80.61
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LHS-3131-303
IMS Product Code: 1783807
Packaging: Sold Individually
Description:
Contrinex LHS-3131-303 Background Suppression ( Distance) Compact Photoelectric Sensor
Specifications
| Operating principle | Background suppression |
|---|---|
| Light source | LED, red 660 nm |
| Housing size [mm] | 30 x 30 |
| Sensitivity adjustment | 12-turn potentiometer |
| Polarity | PNP |
| Output | Light-on |
| Interface | Standard output |
| Connection | M8 3-pin |
| Supply voltage | 10...36 VDC |
| Switching frequency max. [Hz] | 500 |
| Housing material | PBTP (Crastin) |
| Temperature range | -25...55 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
