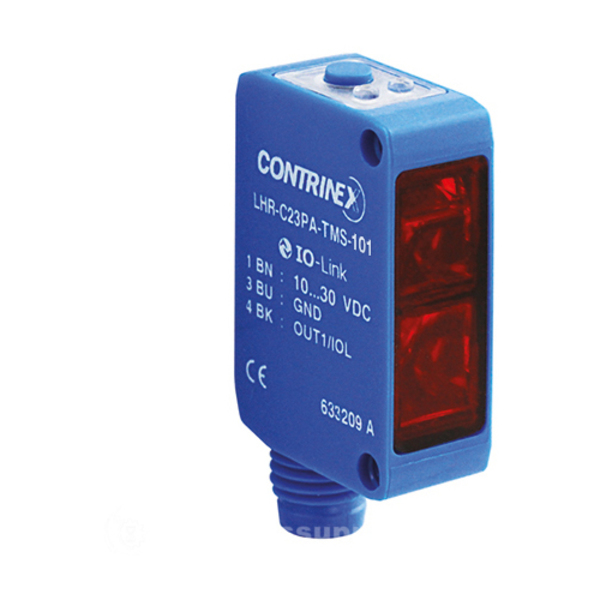

CONTRINEX LHR-C23PA-TMS-101 WASHDOWN PHOTOELECTRIC SENSOR
Starting At: $63.22
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LHR-C23PA-TMS-101
IMS Product Code: 1783481
Packaging: Sold Individually
Description:
Contrinex LHR-C23PA-TMS-101 Background Suppression ( Distance) Washdown Photoelectric Sensor
Specifications
| Operating principle | Background suppression |
|---|---|
| Sensing range typ. Max. | 10…300 mm |
| Light source | Pinpoint LED, red 640 nm |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 30…300 mm, teach |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Interface | Standard output |
| Connection | M8 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
