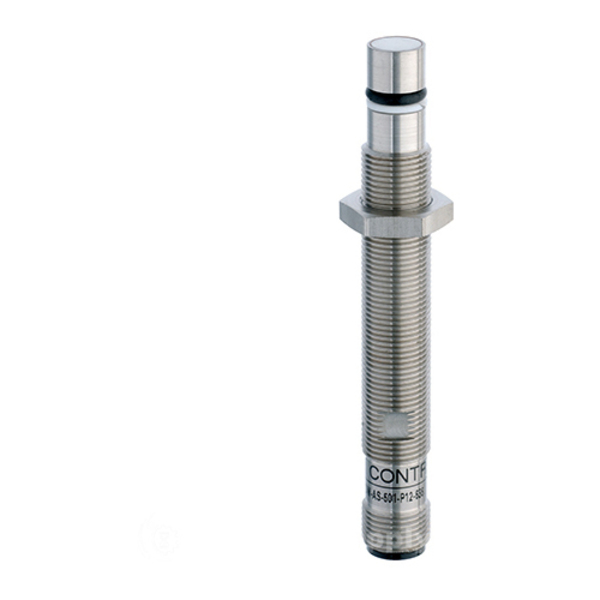

CONTRINEX DW-AS-501-P12-635 HIGH PRESSURE INDUCTIVE SENSOR
Starting At: $213.18
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: DW-AS-501-P12-635
IMS Product Code: 1786196
Packaging: Sold Individually
Description:
Contrinex DW-AS-501-P12-635 Ext Range High Pressure Inductive Sensor
Specifications
| Operating distance Sn | 1.5 mm |
|---|---|
| Housing size [mm] | M12 |
| Mounting | Embeddable |
| Polarity | NPN |
| Output | Normally open (NO) |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 600 |
| Housing material | Stainless-steel V2A |
| Enclosure rating (IP) | IP 68 |
| Operating pressure [bar] | ≤ 500 bar / 1000 bar peak |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 28 to 35 Days
