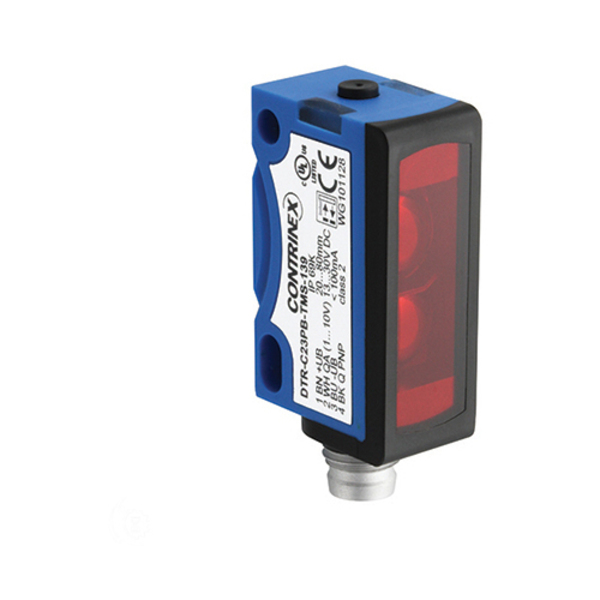

CONTRINEX DTR-C23PB-TMS-139 ANALOG AND DISTANCE MEASURING SENSOR
Starting At: $205.49
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: DTR-C23PB-TMS-139
IMS Product Code: 1783963
Packaging: Sold Individually
Description:
Contrinex DTR-C23PB-TMS-139 High Precision Analog And Distance Measuring Sensor
Specifications
| Operating principle | Distance diffuse |
|---|---|
| Repeatability | < 0.4 mm |
| Linearity | ± 0.4 mm |
| Light source | LED, red 632 nm |
| Housing size [mm] | 20 x 34 (C23) |
| Sensitivity adjustment | Teach button |
| Polarity | PNP |
| Output | Light-on/Dark-on + 1...10 V |
| Interface | Standard output |
| Connection | M8 4-pin |
| Supply voltage | 13...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | ABS |
| Temperature range | -20...60 °C |
| Enclosure rating (IP) | IP 67/IP 69K |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
