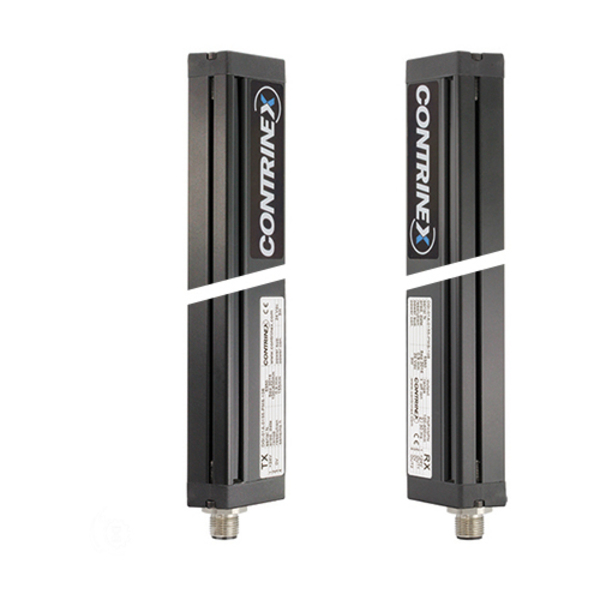

CONTRINEX DGI-04A-0075-NMS-107 DETECTION LIGHT GRID
Starting At: $467.07
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: DGI-04A-0075-NMS-107
IMS Product Code: 1784484
Packaging: Sold Individually
Description:
Contrinex DGI-04A-0075-NMS-107 4 mm Resolution Detection Light Grid
Specifications
| Operating principle | Detection grid |
|---|---|
| Sensing range typ. Max. | 80…800 mm |
| Light source | Led, infrared |
| Housing size [mm] | 40 x 20.5 (Light Grid) |
| Light grid height [mm] | 100 mm |
| Sensitivity adjustment | No |
| Polarity | Push-pull |
| Output | Light-on + Dark-on |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 24 VDC ± 20 % |
| Housing material | Aluminium |
| Temperature range | -5...50 °C |
| Enclosure rating (IP) | IP 65 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
