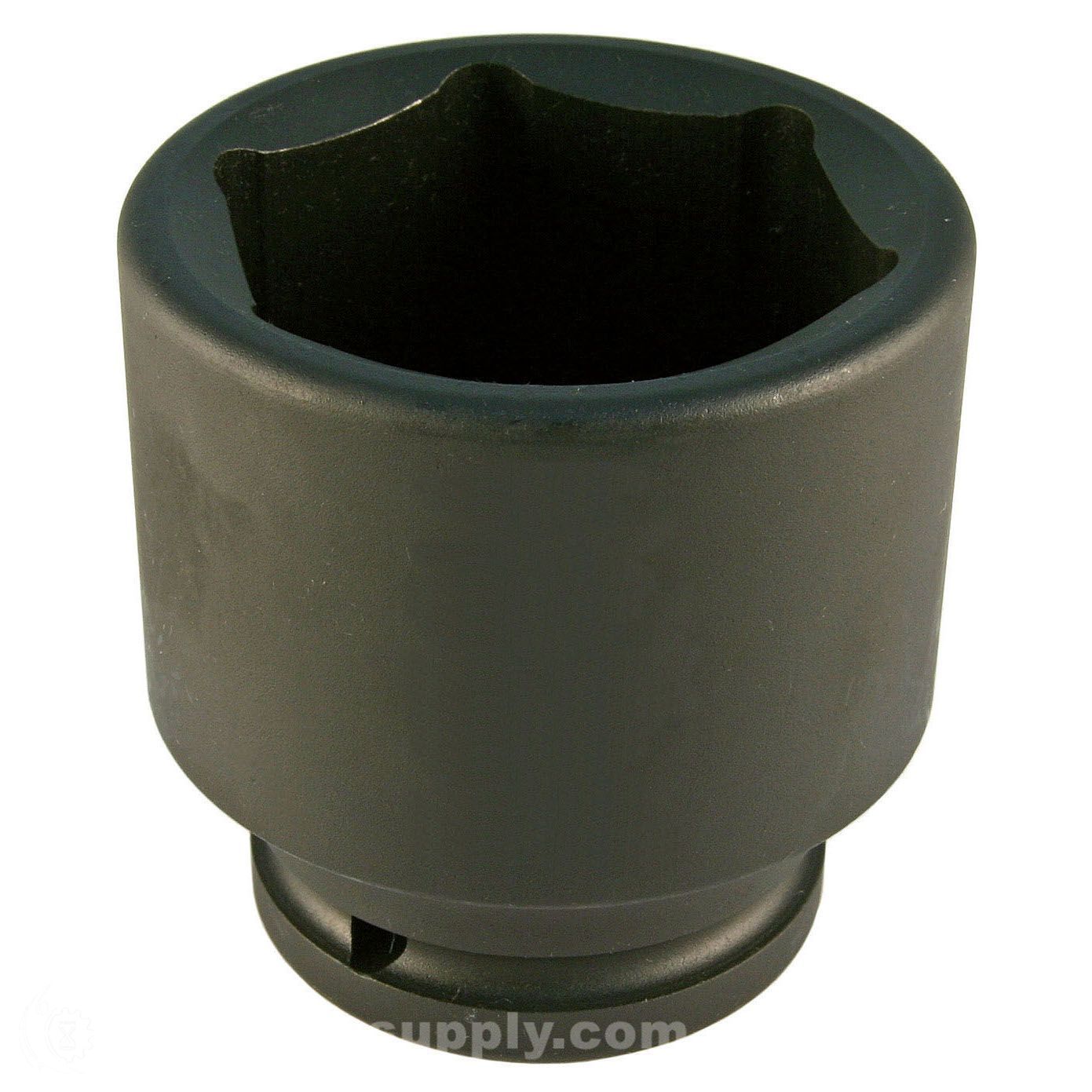

CHICAGO PNEUMATIC S836M 1" DRIVE STANDARD IMPACT SOCKET 36MM
Quick Overview
Manufactured By: CHICAGO PNEUMATIC
Manufacturer Part Number: S836M
IMS Product Code: 2027925
Packaging: Sold Individually
Description:
Chicago Pneumatic S836M 1" Drive Standard Impact Socket 36MM
8940 1643 37: Impact sockets Chrome-molybdenum Steel and Phosphate manganese surface finish for extreme wear resistance, easy to read laser etched marking with output size, and model number. Impact sockets are designed to be used with impact and ratchet wrenches in high speed, high torque applications. Structurally, sockets are built to be soft and ductile so that they can easily deform and reform due to the immense stress exerted by the hammering action of an impact wrench. Designed with a cross hole in the handle end, compatible with a retaining pin and ring, or locking pin anvil.
Technical Specifications
Length (L): 2.44 in
Type of the socket: Standard
Groove diameter (in): 5/16

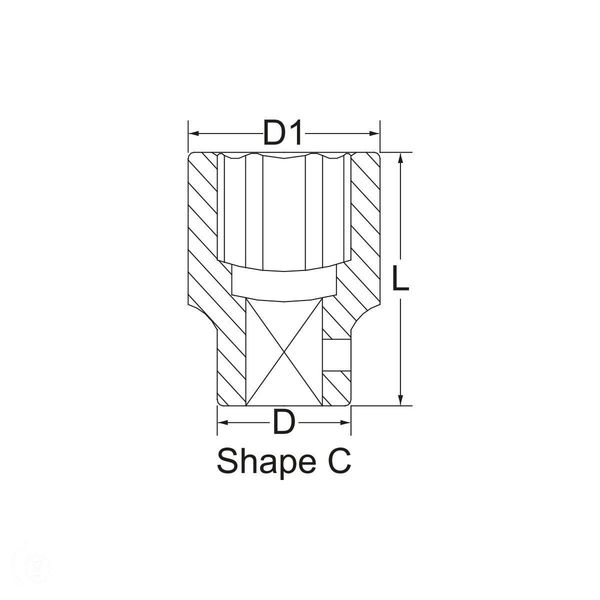

Socket shape: Shape C/Standard
Diameter square (mm): 56
Groove diameter (mm): 8
Output diameter (in): 2-3/16
Product content: Single part
Square Drive (in): 1
Output drive size (mm): 36
Diameter square (in): 2-3/16
Output diameter (mm): 56
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
