CHICAGO PNEUMATIC S628D 3/4" DRIVE DEEP IMPACT SOCKET 1-3/4"
Quick Overview
Manufactured By: CHICAGO PNEUMATIC
Manufacturer Part Number: S628D
IMS Product Code: 2026431
Packaging: Sold Individually
Description:

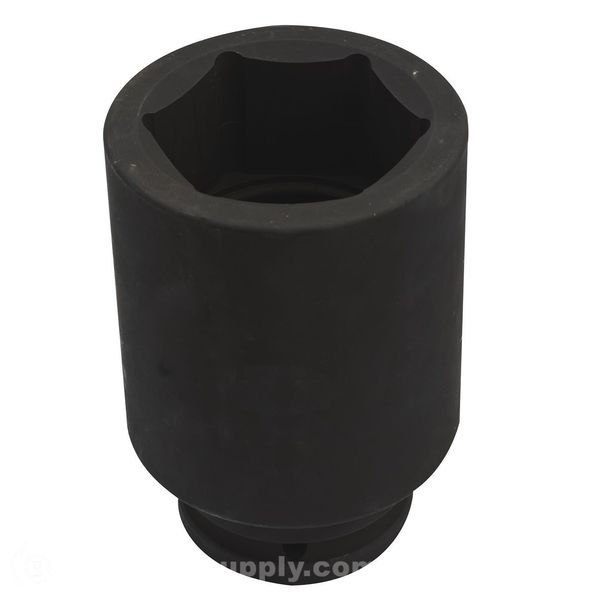

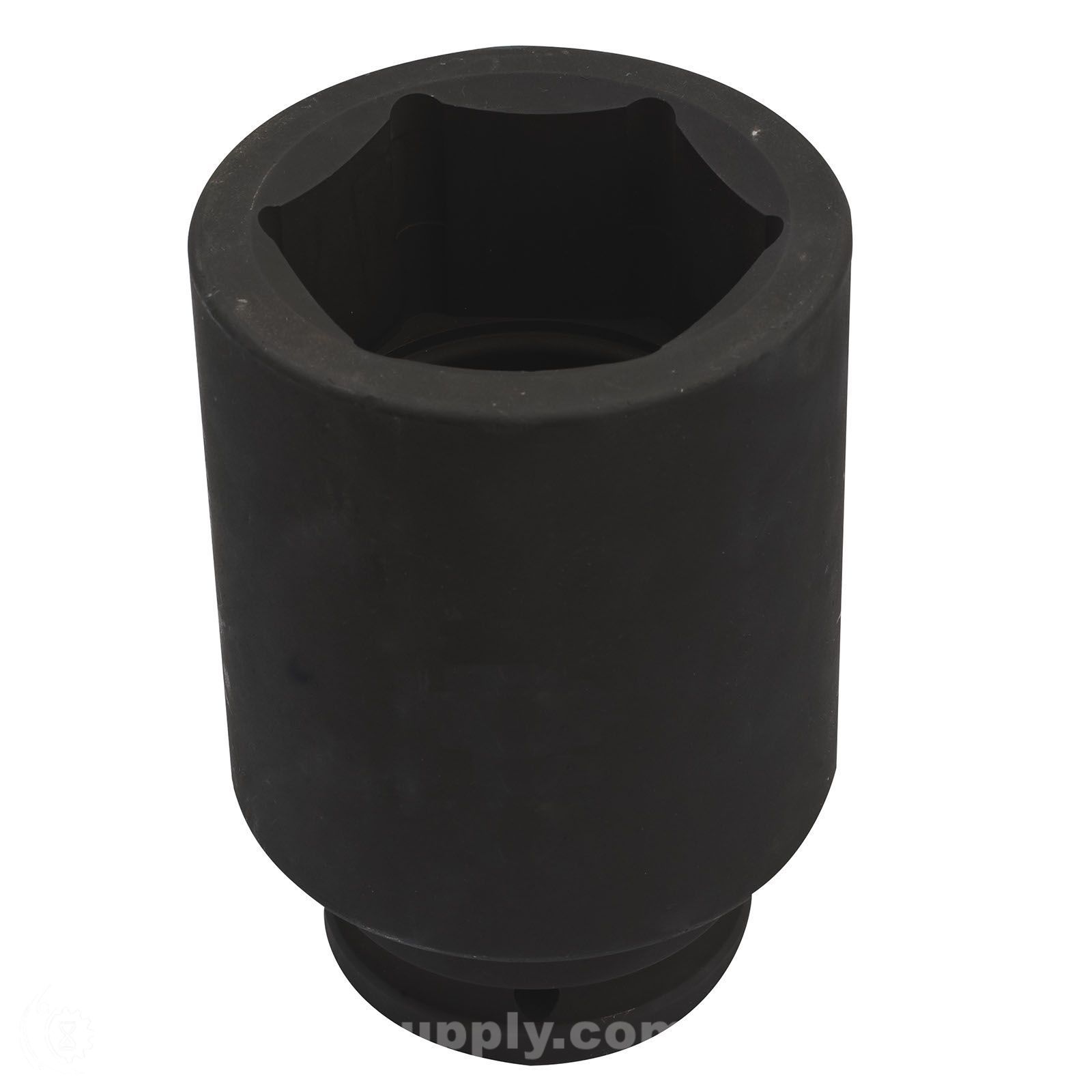

Chicago Pneumatic S628D 3/4" Drive Deep Impact Socket 1-3/4"
8940 1642 27: Impact sockets Chrome-molybdenum Steel and Phosphate manganese surface finish for extreme wear resistance, easy to read laser etched marking with output size, and model number. Impact sockets are designed to be used with impact and ratchet wrenches in high speed, high torque applications. Structurally, sockets are built to be soft and ductile so that they can easily deform and reform due to the immense stress exerted by the hammering action of an impact wrench. Designed with a cross hole in the handle end, compatible with a retaining pin and ring, or locking pin anvil.
Technical Specifications
- Length (L): 3.35 in
- Groove diameter (in): 1/4

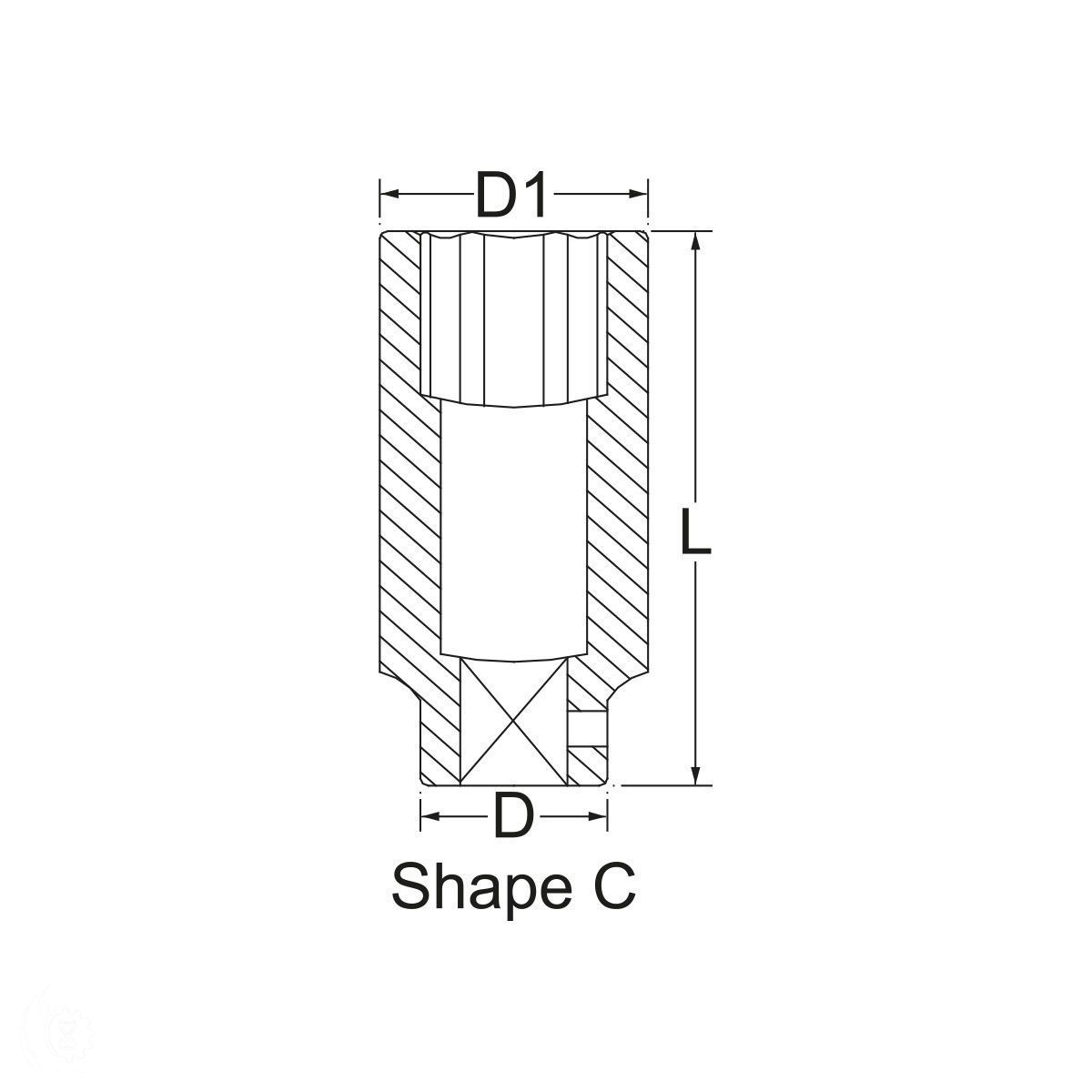

- Socket shape: Shape C/deep
- Groove diameter (mm): 6
- Total product weight: 2.26 lb
- Product content: Single part
- Output diameter (in): 2-9/16
- Square Drive (in): 3/4
- Diameter square (mm): 44
- Output drive size (in): 1-3/4
- Diameter square (in): 1-3/4
- Type of the socket: Deep
- Output diameter (mm): 65
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
