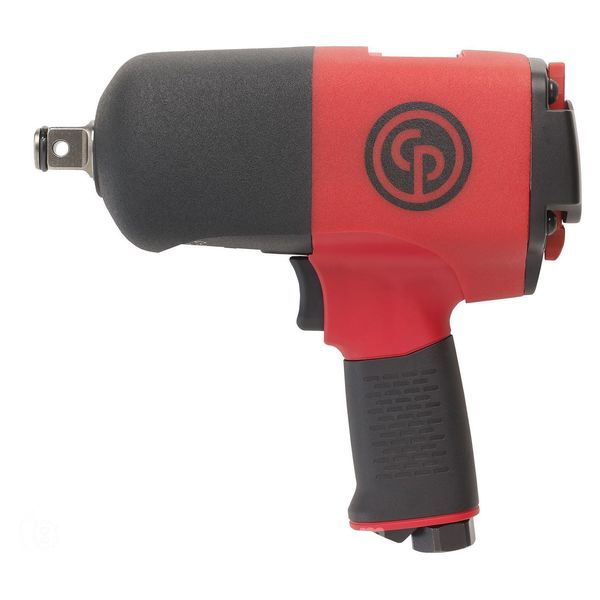

CHICAGO PNEUMATIC CP8272-D 3/4" PISTOL PNEUMATIC IMPACT WRENCH
Quick Overview
Manufactured By: CHICAGO PNEUMATIC
Manufacturer Part Number: CP8272-D
IMS Product Code: 2018747
Packaging: Sold Individually
Description:
Chicago Pneumatic CP8272-D 3/4" Pistol Pneumatic Impact Wrench
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8" to 3/4".
Specifications:
Design & Functions
- Max working torque fwd: 922 ft.lbf
- Length (L): 9.06 in
- Min working torque fwd: 184 ft.lbf
- Power weight ratio: 500 Nm/kg
- Air inlet thread size (in): 3/8
- Weight: 8.05 lb
- Impact mecanism: Twin hammer
- Body: Composite
- Output drive size (in): 3/4
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 107 dB(A)
- Side to Center: 1.57 in
- Clutch housing: Aluminum
- Max torque reverse: 1220 ft.lbf
- Max dynamic air working pressure: 91 psi
- Torque limited: No
- Suspension option: Optional
- Clutch lubrication type: Grease
- Starting system: Trigger
- Free Speed: 6500 rpm
- Output retainer type: Dual
- Handle type: Pistol
- Output drive type: Sq
- Sound Pressure: 96 dB(A)
- Vibration (m/s²): 15.5
- Uncertainty vibration-K: 22.3 ft/s²
- Blow per minute: 1000
- Min hose diam (16 ft hose length): 0.5 in
Torque
- Max working torque fwd: 922 ft.lbf
- Min working torque fwd: 184 ft.lbf
- Max torque reverse: 1220 ft.lbf
- Torque limited: No
Speed
- Free Speed: 6500 rpm
Noise & vibrations
- Uncertainty vibration-K: 22.3 ft/s²
- Vibration (m/s²): 15.5
- Sound Pressure: 96 dB(A)
- Sound Power: 107 dB(A)
Certifications, standards & directives
- ATEX: No
General
- Max working torque fwd: 922 ft.lbf
- Length (L): 9.06 in
- Min working torque fwd: 184 ft.lbf
- Air inlet thread size (in): 3/8
- Weight: 8.05 lb
- Impact mecanism: Twin hammer
- Min hose diam (16 ft hose length): 0.5 in
- Body: Composite
- Uncertainty vibration-K: 22.3 ft/s²
- Blow per minute: 1000
- Output drive size (in): 3/4
- Min hose diam (5 m hose length): 13 mm
- Vibration (m/s²): 15.5
- Sound Pressure: 96 dB(A)
- Sound Power: 107 dB(A)
- Output drive type: Sq
- Side to Center: 1.57 in
- Clutch housing: Aluminum
- Max torque reverse: 1220 ft.lbf
- Handle type: Pistol
- Max dynamic air working pressure: 91 psi
- Torque limited: No
- Clutch lubrication type: Grease
- Output retainer type: Dual
- Starting system: Trigger
- Free Speed: 6500 rpm
Air information
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 91 psi
