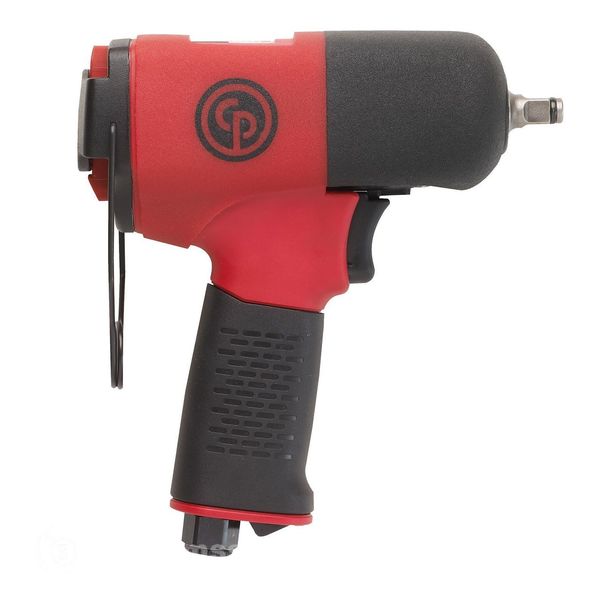

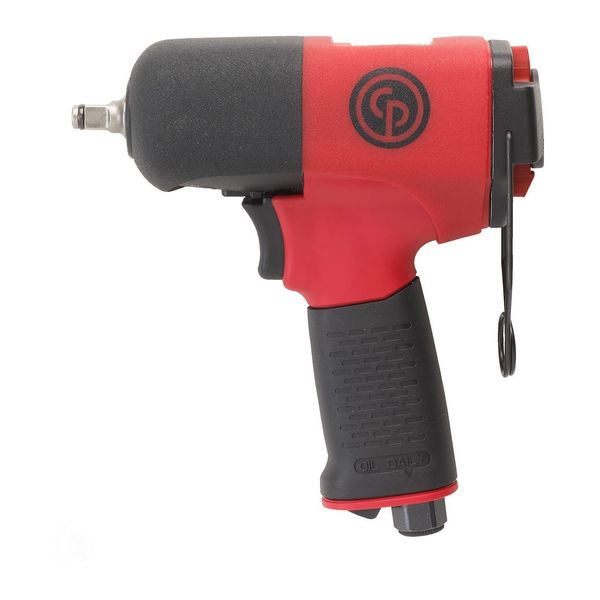

CHICAGO PNEUMATIC CP8252-R 1/2" PISTOL PNEUMATIC IMPACT WRENCH
Quick Overview
Manufactured By: CHICAGO PNEUMATIC
Manufacturer Part Number: CP8252-R
IMS Product Code: 2018740
Packaging: Sold Individually
Description:
Chicago Pneumatic CP8252-R 1/2" PISTOL PNEUMATIC IMPACT WRENCH
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8" to 3/4".
Specifications:
Design & Functions
- Max working torque fwd: 553 ft.lbf
- Length (L): 7.87 in
- Min working torque fwd: 111 ft.lbf
- Power weight ratio: 470 Nm/kg
- Air inlet thread size (in): 1/4
- Weight: 4.41 lb
- Impact mecanism: Twin hammer
- Body: Composite
- Output drive size (in): 1/2
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 105 dB(A)
- Side to Center: 1.38 in
- Clutch housing: Aluminum
- Max torque reverse: 701 ft.lbf
- Max dynamic air working pressure: 91 psi
- Torque limited: No
- Suspension option: Included
- Clutch lubrication type: Grease
- Starting system: Trigger
- Free Speed: 9000 rpm
- Output retainer type: Friction ring
- Handle type: Pistol
- Output drive type: Sq
- Sound Pressure: 94 dB(A)
- Vibration (m/s²): 8.8
- Uncertainty vibration-K: 11.8 ft/s²
- Blow per minute: 1400
- Min hose diam (16 ft hose length): 0.38 in
Torque
- Max working torque fwd: 553 ft.lbf
- Min working torque fwd: 111 ft.lbf
- Max torque reverse: 701 ft.lbf
- Torque limited: No
Speed
- Free Speed: 9000 rpm
Noise & vibrations
- Uncertainty vibration-K: 11.8 ft/s²
- Vibration (m/s²): 8.8
- Sound Pressure: 94 dB(A)
- Sound Power: 105 dB(A)
Certifications, standards & directives
- ATEX: No
General
- Max working torque fwd: 553 ft.lbf
- Length (L): 7.87 in
- Min working torque fwd: 111 ft.lbf
- Air inlet thread size (in): 1/4
- Weight: 4.41 lb
- Impact mecanism: Twin hammer
- Min hose diam (16 ft hose length): 0.38 in
- Body: Composite
- Uncertainty vibration-K: 11.8 ft/s²
- Blow per minute: 1400
- Output drive size (in): 1/2
- Min hose diam (5 m hose length): 10 mm
- Vibration (m/s²): 8.8
- Sound Pressure: 94 dB(A)
- Sound Power: 105 dB(A)
- Output drive type: Sq
- Side to Center: 1.38 in
- Clutch housing: Aluminum
- Max torque reverse: 701 ft.lbf
- Handle type: Pistol
- Max dynamic air working pressure: 91 psi
- Torque limited: No
- Clutch lubrication type: Grease
- Output retainer type: Friction ring
- Starting system: Trigger
- Free Speed: 9000 rpm
Air information
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 91 psi
