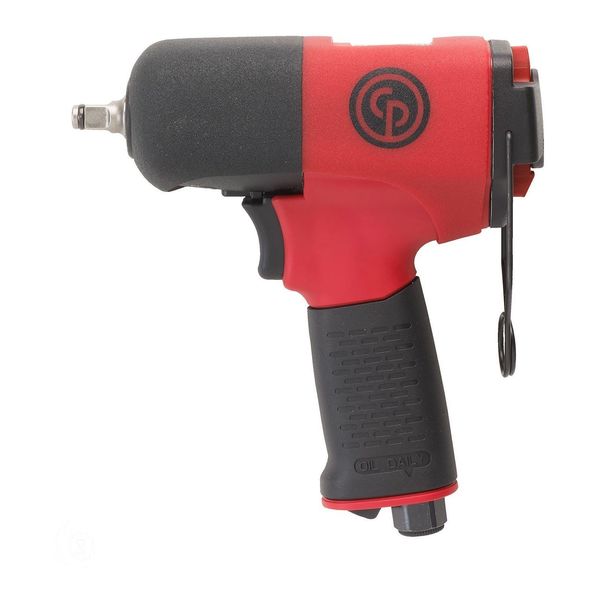

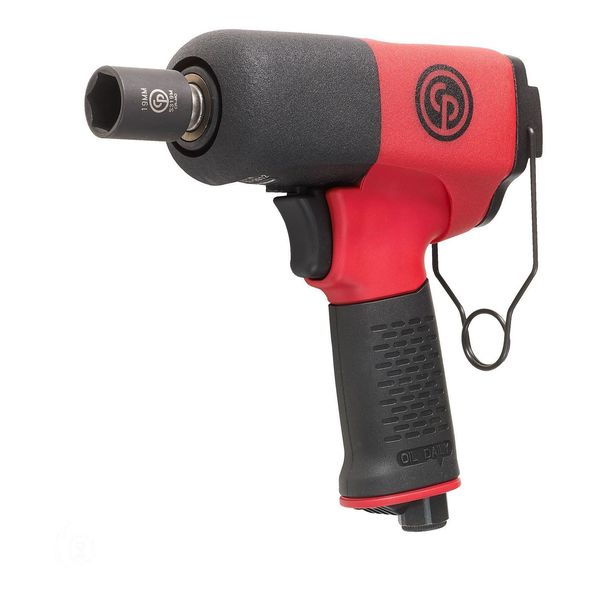

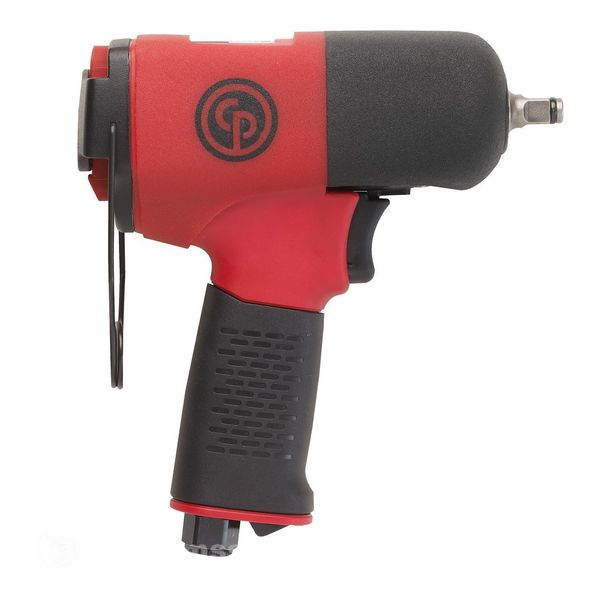

CHICAGO PNEUMATIC CP8222-R 3/8" PISTOL PNEUMATIC IMPACT WRENCH

Starting At: $310.00

Quick Overview

Manufactured By: CHICAGO PNEUMATIC
Manufacturer Part Number: CP8222-R
IMS Product Code: 2018730
Packaging: Sold Individually

Description:

Chicago Pneumatic CP8222-R 3/8" PISTOL PNEUMATIC IMPACT WRENCH

This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8" to 3/4".

Specifications:

Design & Functions

  • Max working torque fwd: 295 ft.lbf
  • Length (L): 6.97 in
  • Min working torque fwd: 59 ft.lbf
  • Power weight ratio: 370 Nm/kg
  • Air inlet thread size (in): 1/4
  • Weight: 2.65 lb
  • Impact mecanism: Twin hammer
  • Body: Composite
  • Output drive size (in): 3/8
  • Min hose diam (5 m hose length): 10 mm
  • Sound Power: 100 dB(A)
  • Side to Center: 1.18 in
  • Clutch housing: Aluminum
  • Max torque reverse: 332 ft.lbf
  • Max dynamic air working pressure: 91 psi
  • Torque limited: No
  • Suspension option: Included
  • Clutch lubrication type: Grease
  • Starting system: Trigger
  • Free Speed: 11500 rpm
  • Output retainer type: Friction ring
  • Handle type: Pistol
  • Output drive type: Sq
  • Sound Pressure: 89 dB(A)
  • Vibration (m/s²): 5.8
  • Uncertainty vibration-K: 7.9 ft/s²
  • Blow per minute: 1250
  • Min hose diam (16 ft hose length): 0.38 in

Torque

  • Max working torque fwd: 295 ft.lbf
  • Min working torque fwd: 59 ft.lbf
  • Max torque reverse: 332 ft.lbf
  • Torque limited: No

Speed

  • Free Speed: 11500 rpm

Noise & vibrations

  • Uncertainty vibration-K: 7.9 ft/s²
  • Vibration (m/s²): 5.8
  • Sound Pressure: 89 dB(A)
  • Sound Power: 100 dB(A)

Certifications, standards & directives

  • ATEX: No

General

  • Max working torque fwd: 295 ft.lbf
  • Length (L): 6.97 in
  • Min working torque fwd: 59 ft.lbf
  • Air inlet thread size (in): 1/4
  • Weight: 2.65 lb
  • Impact mecanism: Twin hammer
  • Min hose diam (16 ft hose length): 0.38 in
  • Body: Composite
  • Uncertainty vibration-K: 7.9 ft/s²
  • Blow per minute: 1250
  • Output drive size (in): 3/8
  • Min hose diam (5 m hose length): 10 mm
  • Vibration (m/s²): 5.8
  • Sound Pressure: 89 dB(A)
  • Sound Power: 100 dB(A)
  • Output drive type: Sq
  • Side to Center: 1.18 in
  • Clutch housing: Aluminum
  • Max torque reverse: 332 ft.lbf
  • Handle type: Pistol
  • Max dynamic air working pressure: 91 psi
  • Torque limited: No
  • Clutch lubrication type: Grease
  • Output retainer type: Friction ring
  • Starting system: Trigger
  • Free Speed: 11500 rpm

Air information

  • Air inlet thread size (in): 1/4
  • Max dynamic air working pressure: 91 psi
