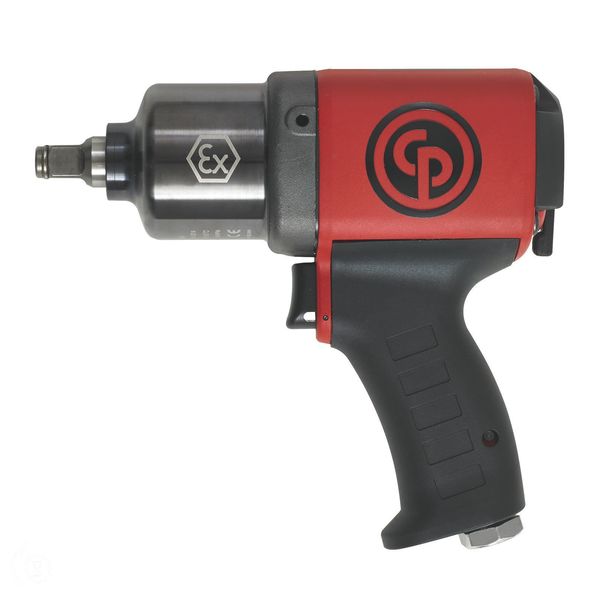

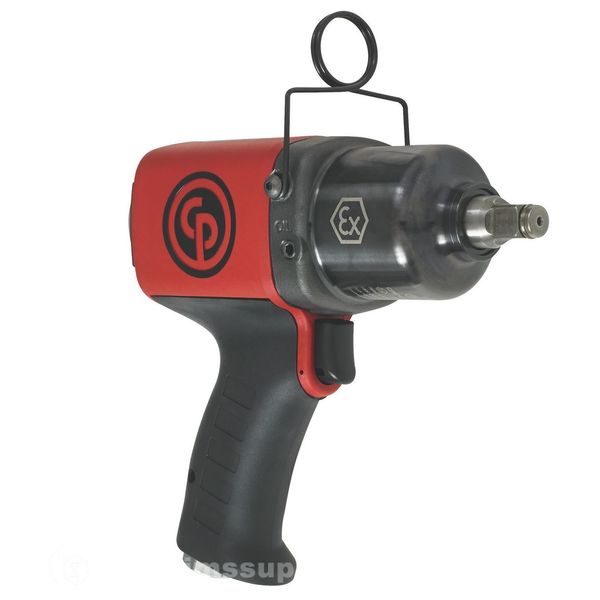

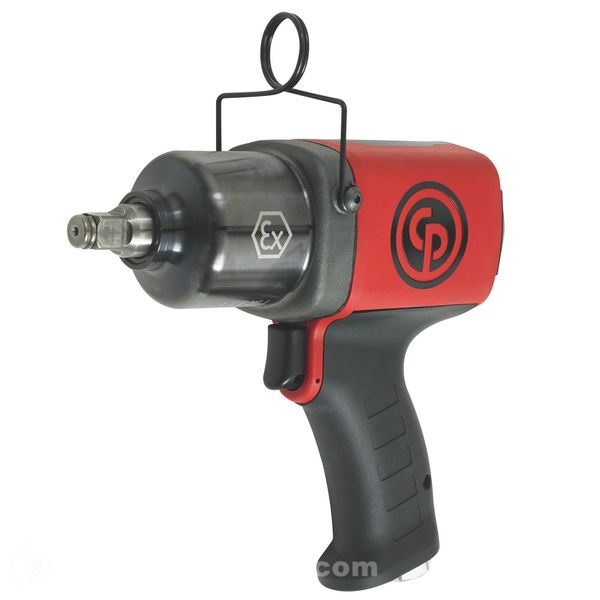

CHICAGO PNEUMATIC CP6748EX-P11R 1/2PISTOL PNEUMATIC IMPACT WRENCH
Quick Overview
Manufactured By: CHICAGO PNEUMATIC
Manufacturer Part Number: CP6748EX-P11R
IMS Product Code: 2018750
Packaging: Sold Individually
Description:
Chicago Pneumatic CP6748EX-P11R 1/2"PISTOL PNEUMATIC IMPACT WRENCH
Work in any heavy -duty environment with the CP67XX series of impact wrenches from 3/8" to 1, including Atex certified-IP6 dust-proof models. Designed with a powerful and durable oil bath twin hammer clutch mechanism, steel housing, and a lightweight composite body, the CP67XX delivers a maximum reverse torque from 475 up to 1750 Nm (350 up to 1290 ft.lb us). The CP67XX series is available in ATEX and non ATEX for CP6728 and 38 with ring or ring-dual socket retainer.
Specifications:
Design & Functions
- Max working torque fwd: 561 ft.lbf
- Length (L): 7.87 in
- Min working torque fwd: 133 ft.lbf
- Power weight ratio: 450 Nm/kg
- Air inlet thread size (in): 1/4
- Weight: 5.29 lb
- Impact mecanism: Twin hammer
- Body: Composite
- Output drive size (in): 1/2
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 104 dB(A)
- Side to Center: 1.42 in
- Clutch housing: Steel
- Max torque reverse: 800 ft.lbf
- Max dynamic air working pressure: 91 psi
- Torque limited: No
- Suspension option: Included
- Clutch lubrication type: Oil bath
- Starting system: Trigger
- Free Speed: 8400 rpm
- Output retainer type: Friction ring
- Handle type: Pistol
- Output drive type: Sq
- Sound Pressure: 93 dB(A)
- Vibration (m/s²): 8.7
- Uncertainty vibration-K: 7.2 ft/s²
- Blow per minute: 1200
- Min hose diam (16 ft hose length): 0.38 in
Torque
- Max working torque fwd: 561 ft.lbf
- Min working torque fwd: 133 ft.lbf
- Max torque reverse: 800 ft.lbf
- Torque limited: No
Speed
- Free Speed: 8400 rpm
Noise & vibrations
- Uncertainty vibration-K: 7.2 ft/s²
- Vibration (m/s²): 8.7
- Sound Pressure: 93 dB(A)
- Sound Power: 104 dB(A)
Certifications, standards & directives
- ATEX: Yes
General
- Max working torque fwd: 561 ft.lbf
- Length (L): 7.87 in
- Min working torque fwd: 133 ft.lbf
- Air inlet thread size (in): 1/4
- Weight: 5.29 lb
- Impact mecanism: Twin hammer
- Min hose diam (16 ft hose length): 0.38 in
- Body: Composite
- Uncertainty vibration-K: 7.2 ft/s²
- Blow per minute: 1200
- Output drive size (in): 1/2
- Min hose diam (5 m hose length): 10 mm
- Vibration (m/s²): 8.7
- Sound Pressure: 93 dB(A)
- Sound Power: 104 dB(A)
- Output drive type: Sq
- Side to Center: 1.42 in
- Clutch housing: Steel
- Max torque reverse: 800 ft.lbf
- Handle type: Pistol
- Max dynamic air working pressure: 91 psi
- Torque limited: No
- Clutch lubrication type: Oil bath
- Output retainer type: Friction ring
- Starting system: Trigger
- Free Speed: 8400 rpm
Air information
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 91 psi
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 4 to 7 Days
