BROWNING VPE-216 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VPE-216
IMS Product Code: 1734848
Packaging: Sold Individually
Description:

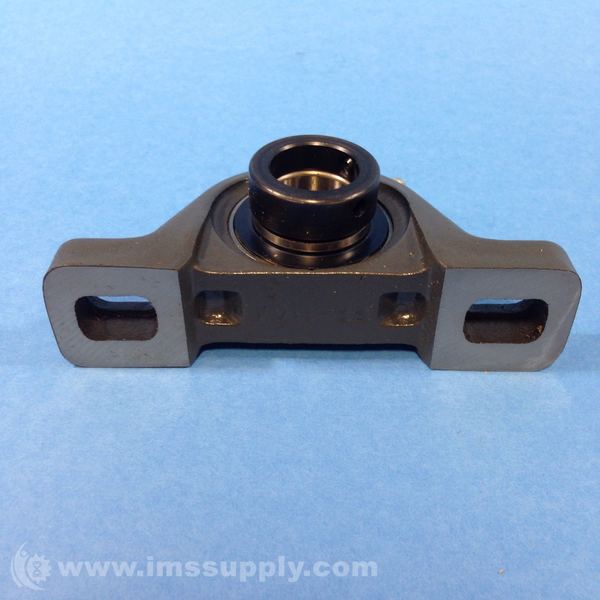

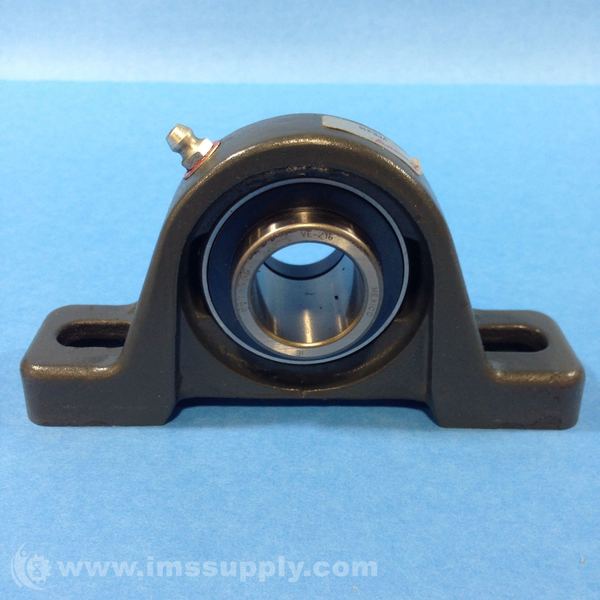

Browning VPE-216 Pillow Block Bearing
Specifications:
- Mounting: Two-Bolt Base
- Bore Diameter: 1.0000 in
- Bore Type: Round
- Base to Bore Centerline: 1.4375 in
- Duty Type: Normal Duty
- Housing Material: Cast Iron
- Locking Device: Eccentric
- Seal Type: Single Lip Contact with Flinger
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Length: 5.5000 in
- Overall Height: 2.8125 in
- Finish/Coating: Gray Painted
- Insert Material: 52100 Bearing Steel
- Maximum Operating Temperature: 200 °F
- Radial Dynamic Load Capacity: 2801 lb
- Radial Static Load Capacity: 1651 lb
- Base Width: 1.4063 in
- Bolt Center-to-Center Length: 3.7188 to 4.5313 in
- Maximum RPM: 5500 RPM
- Lubrication Type: Lubrication Fitting
