BROWNING R12 1070291 SPLIT TAPER BUSHING - R1 SERIES, 2.5000 IN
Starting At: $13.80
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: R1-2
IMS Product Code: 1791972
Packaging: Sold Individually
Description:
Browning R12 1070291 Split Taper Bushing - R1 Series, 2.5000 in Bore, 5/8 x 5/16 in Keyway, Sintered Steel
Specifications:
- Bore diameter: 2.5000 in
- Flange type: Solid Flange
- Flange outside diameter: 5-3/8 in
- MFunting type: Conventional
- Flange thickness: 5/8 in
- Screw torque: 348 in-lbs
- Length through bore: 2-7/8 in
- barrel diameter (small end): 3-7/8 in
- Barrel diameter (large end): 4 in
- Bolt circle diameter: 4-5/8 in
- Bushing size: R1
- Number of bolt holes: 3
- Bore type: Finished w/ Keyway
- Screw thread size:3/8 in
- Keyway size: 5/8 x 5/16 in
- Screw length: 1-3/4 in
- Material: Sintered Steel

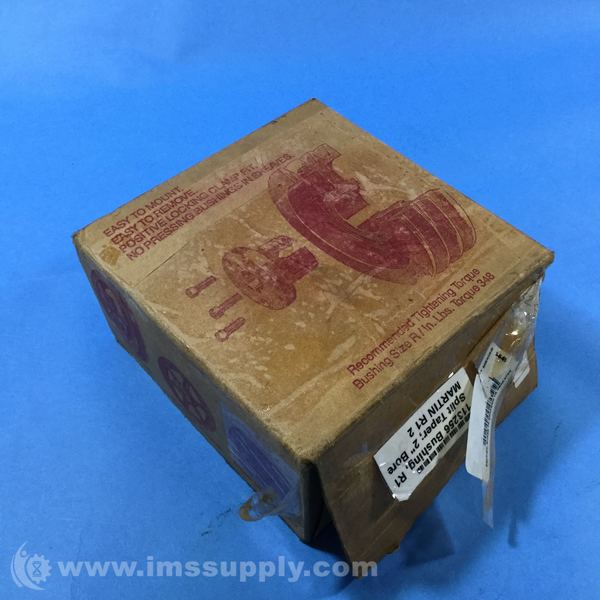

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
