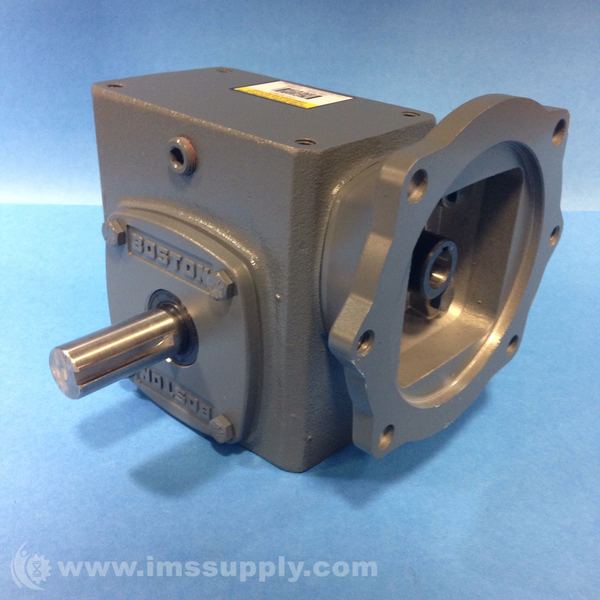

BOSTON GEAR F721-30-B5-6 RIGHT ANGLE WORM GEAR SPEED REDUCER
Quick Overview
Manufactured By: BOSTON GEAR
Manufacturer Part Number: F721-30-B5-6
IMS Product Code: 1734909
Packaging: Sold Individually
Description:
- Integral input worm and shaft design made from high-strength, case-hardened alloy steel
- Multi-position mounting flexibility of the 700 Series speed reducers allows for installation in almost any position
- Large oil reservoir provides highly efficient heat dissipation and lubrication for longer operating life
- Reducer sizes 710 through 726 have pre-lubricated ball bearings; 732 through 760 have tapered roller bearings
- Mounting base and other accessories sold separately
Maximum Input Horsepower: 0.99 @ 1,750 RPM hp
Ratio: 30:1
NEMA / IEC Frame Size: 56C
Input Type: C-Face Quilled
Output Type: Solid Shaft
Output Direction: Left
Input Size: 5/8 in
Output Size: 1 in
Center Distance: 2.06 in
Reduction: Single
Manufacturer Reducer Size: 721
Maximum Output RPM: 58.3 @ 1,750 RPM RPM
Maximum Output Torque: 1050 @ 100 RPM in·lb
Housing Material: Cast Iron
Overhung Load Capacity: 700 lb
Housing Dimensions: 6 x 3.81 x 6.38 in
Housing Height: 6.38 in
Housing Length: 6 in
Housing Width: 3.81 in
Mounting Type: No Base
Standards Met: AGMA
