BECKHOFF KL2612 2-CHANNEL RELAY OUTPUT TERMINAL 125 V AC, 30 V DC
Quick Overview
Manufactured By: BECKHOFF
Manufacturer Part Number: KL2612
IMS Product Code: 321077
Packaging: Sold Individually
Description:
Beckhoff KL2612 | Bus Terminal, 2-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC

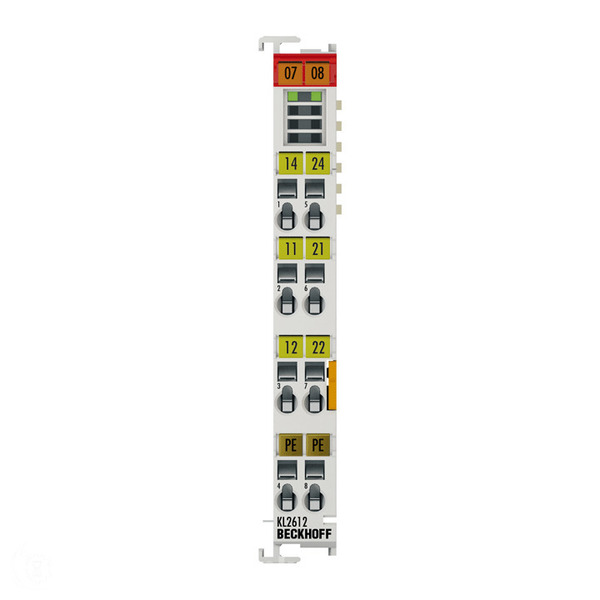

The KL2612 output terminal switches two relays, each having one changeover contact, under control of the automation device. It has potential-free contacts. The power contacts are not looped through.
| Technical data | KL2612 |
|---|---|
| Number of outputs | 2 x change-over |
| Nominal voltage | 125 V AC/30 V DC |
| Load type | ohmic |
| Max. output current | 2 A per channel |
| Switching current | 0.5 A AC/2 A DC (ohmic) |
| Ohmic switching current | 0.5 A AC/2 A DC |
| Inductive switching current | no data |
| Minimum permitted load | 10 µA at 10 mV |
| Lamp test, electronic ballast | max. 2 A starting current |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | – |
| Current consumption K-bus | typ. 60 mA |
| Bit width in the process image | 2 outputs |
| Operating cycles mech. (min.) | 1 x 108 |
| Operating cycles electr. (min.) | 2 x 105 (1 A/30 V DC) |
| Configuration | no address or configuration setting |
| Special features | signal relay |
| Weight | approx. 80 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, DNV GL |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
| Housing data | KL-12-8pin | |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² | |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 | |
| Stripping length | 8…9 mm | |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
