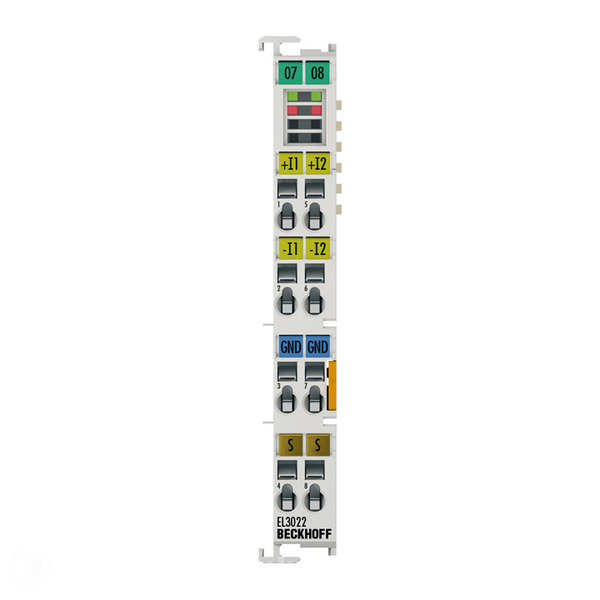

BECKHOFF EL3022 ETHERCAT TERMINAL, 2-CHANNEL ANALOG INPUT, 12 BIT
Quick Overview
Manufactured By: BECKHOFF
Manufacturer Part Number: EL3022
IMS Product Code: 1970159
Packaging: Sold Individually
Description:
EL3022 | EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential
The EL3022 analog input terminal processes signals in the range between 4 and 20 mA. The current is digitized to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3022 combines two channels in one housing. An open lead or overload condition are detected. The terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition and a broken wire.
| Technical data | EL3022 |
|---|---|
| Number of inputs | 2 (differential) |
| Power supply | via the E-bus |
| Technology | differential input |
| Signal type | differential |
| Signal current | 4…20 mA |
| Distributed clocks | – |
| Internal resistance | typ. 85 Ω + diode voltage |
| Input filter limit frequency | 1 kHz |
| Common-mode voltage UCM | max. 10 V |
| Conversion time | 0.625 ms default setting, configurable, multiplex |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Measurement error/ uncertainty | < ±0.3 % (relative to full scale value) |
| Surge voltage resistance | max. 35 V |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 130 mA |
| Bit width in the process image | inputs: 8 byte |
| Special features | standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
Housing data
| Design form | compact terminal housing with signal LEDs | |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | labeling of the BZxxx series | |
| Wiring | solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² | |
| Connection cross-section AWG | s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 | |
| Stripping length | 8…9 mm | |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
