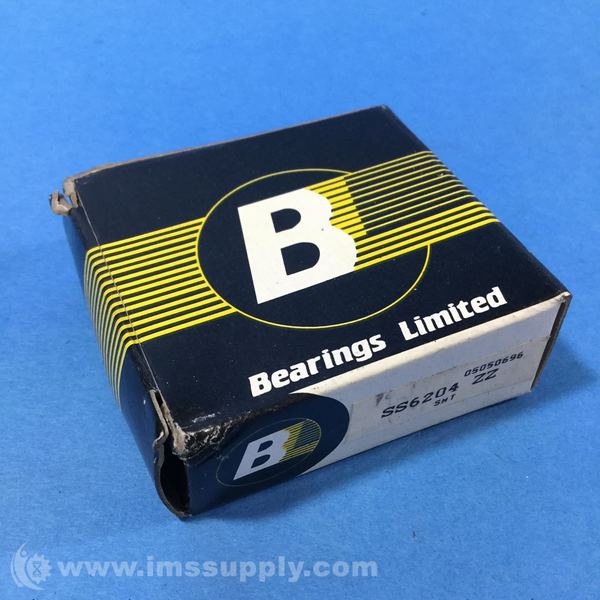

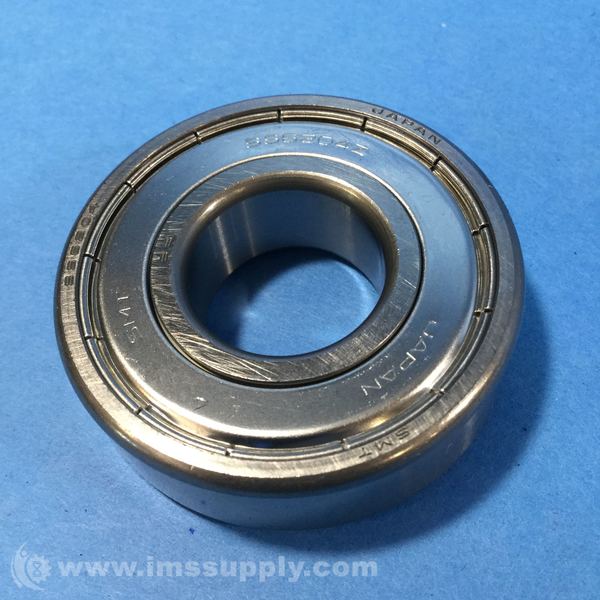

BEARINGS LIMITED SS6204 ZZ 6000 SERIES RADIAL BALL BEARINGS

Call For Quote

Quick Overview

Manufactured By: BEARINGS LIMITED
Manufacturer Part Number: SS6204 ZZ
IMS Product Code: 1789449
Packaging: Sold Individually

Description:

Bearings Limited SS6204 ZZ 6000 Series Radial Ball Bearings – Extra Light Duty Metric

Specifications:

  • Bore diameter (d): 20 mm
  • Outer diameter (D): 42 mm
  • Width (B): 12 mm
  • Basic Load Rating:
    • Dynamic    2110 lbs
    • Static    1140 lbs
  • Speed Rating:
    • Grease    18000 RPM
    • Oil    21000 RPM
  • Weight: 0.150 lbs
  • ABEC Rating: ABEC 1
  • Grease: Mobil Polyrex EM, 30-40% free volume fill
  • Radial Internal Clearance (C3): 0.012 to 0.028 mm (0.0005 to 0.0011 inch)
  • Tolerance:
    • Inner Ring (d)    +0 to -0.1 mm (+0 to -0.0004 inch)
    • Outer Ring (D)    +0 to -0.01 mm (+0 to -0.0004 inch)
    • Width (W)    +0 to -0.12 mm (+0 to -0.0047 inch)
