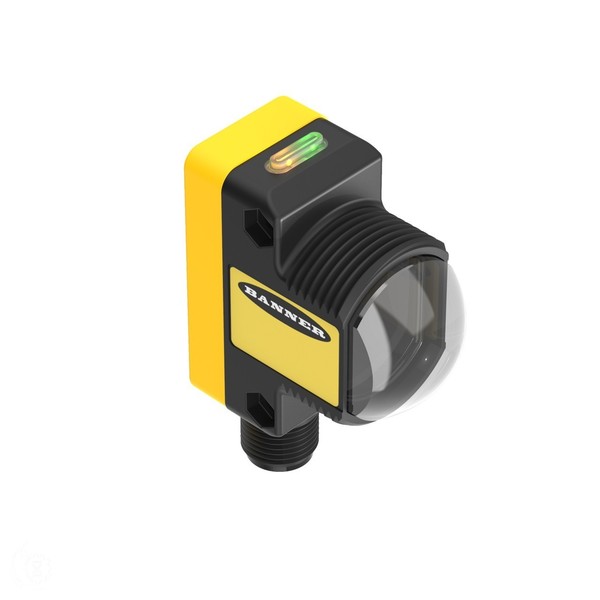

BANNER QS30EXQ WORLD-BEAM HIGH-POWERED EMITTER, RANGE: 213 M
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: QS30EXQ
IMS Product Code: 1970311
Packaging: Sold Individually
Description:
QS30 Series High-Performance Long-Range Sensor
WORLD-BEAM QS30 Series: High-Powered Emitter
Range: 213 m; Input: 10-30 V dc
Output: Not Applicable - No Outputs
5-pin M12 QD
Specifications
Sensing Beam - Infrared LED
Power - DC
Sensing Mode (General) - Opposed
Sensing Mode (Detailed) - Emitter
Housing Style - Rectangular w/M30 Mount
Primary Housing Material - Thermoplastic
Max Sensing Distance (mm) - 213000
Power Supply/Supply Voltage - 10-30 V dc
Connection - Integral QD
Quick Disconnect Type - M12
Operation - N/A
Min Op. Temp. (°C) - -20
Max Op. Temp. (°C) - 60
Output response time (ms) - 30
Special Feature: Intrinsically Safe - No
Special Feature: Remote Teach - No
Special Feature: Water Detection - No
Sensing Beam Wavelength - 875
Delay at Power-up (ms) - 100
Repeatability (µs) - 5000
Number of Pins - 5
NEMA Rating - NEMA 6
IP Rating - IP69
Max Op. Relative Humidity [%] - 95% @ 50°C
Lens Material - Zeonex
Adjustments - N/A
Barrel Diameter (mm) - 30
Indicator - LEDs
Opposed Mode Emitter/Receiver - Emitter
Feature: Washdown Rated - Yes
Feature: Timing (Hold/Delay) - No
Feature: Encapsulated - Yes
Feature: Hazardous Area - No
Feature: Audible - No
Feature: Chemical Resistant - No
Feature: Quick Disconnect - Yes
DeviceNet - No
IO Link - No
