BALLUFF BES 516-355-S4-C BES01H0 PROXIMITY SENSOR

Call For Quote

Quick Overview

Manufactured By: BALLUFF
Manufacturer Part Number: BES 516-355-S4-C
IMS Product Code: 1775234
Packaging: Sold Individually

Description:

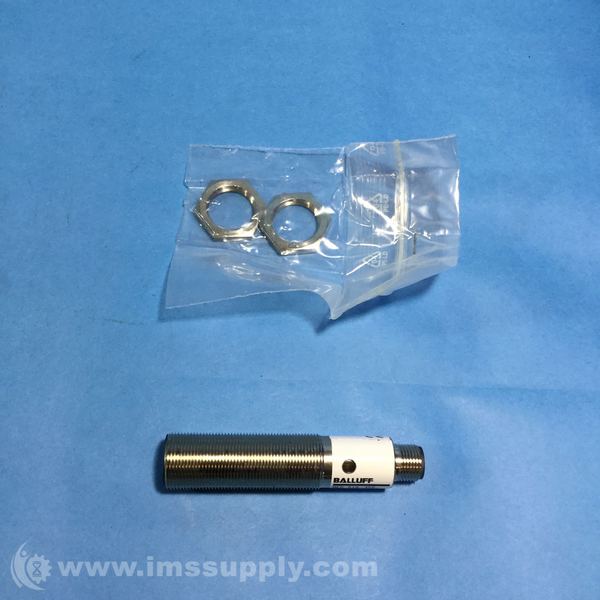

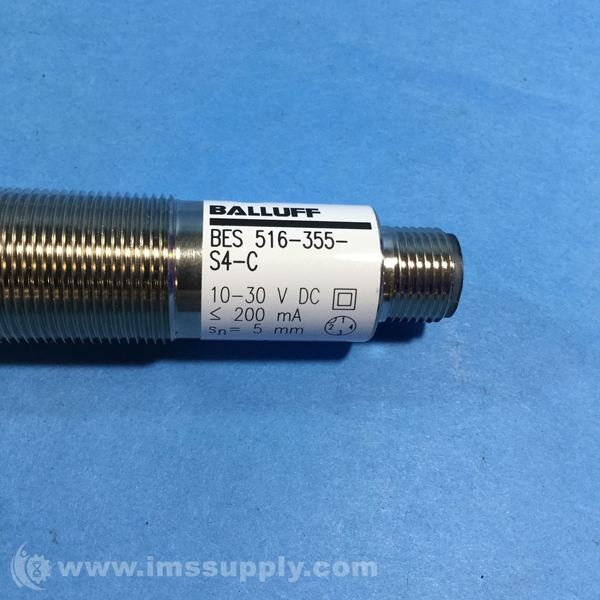

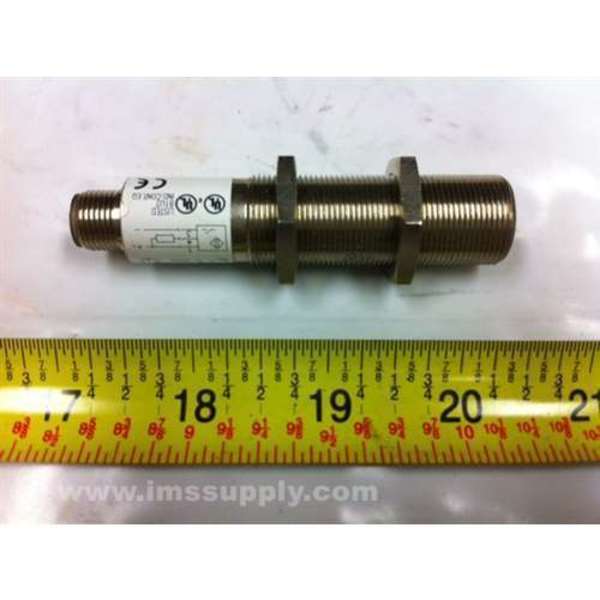

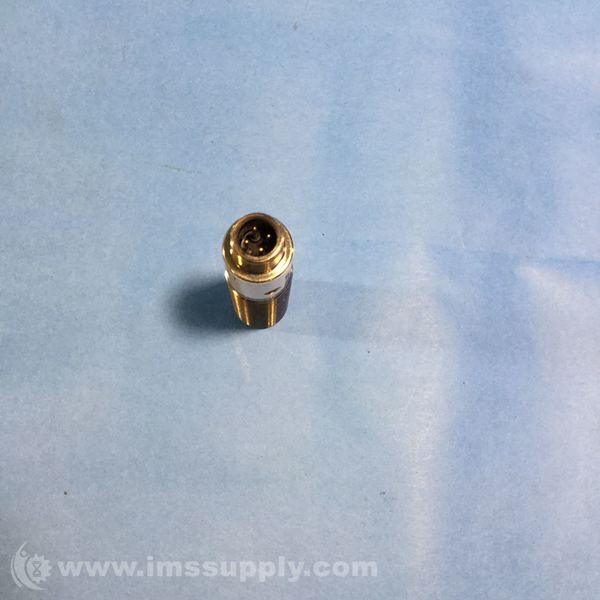

Balluff BES 516-355-S4-C BES01H0 Proximity Sensor

Specifications:

  • Hysteresis H max. (% of Sr): 15.0 %
  • Load capacitance max. at Ue: 1 μF
  • No-load current lo max., undamped: 12 mA
  • Operating voltage Ub: 10...30 VDC
  • Output resistance Ra: 2.2 kOhm + D + LED
  • Pollution degree: 3
  • Protected against miswiring: yes
  • Rated insulation voltage Ui: 250 V AC
  • Rated operating current Ie DC: 200 mA
  • Rated operating voltage Ue DC: 24 V
  • Rated short circuit current: 100 A
  • Ready delay tv max.: 30 ms
  • Repeat accuracy max. (% of Sr): 5.0 %
  • Residual current Ir max.: 80 μA
  • Switching frequency: 500 Hz
  • Utilization category: DC -13
  • Voltage drop static max.: 2.5 V

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Balluff. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
