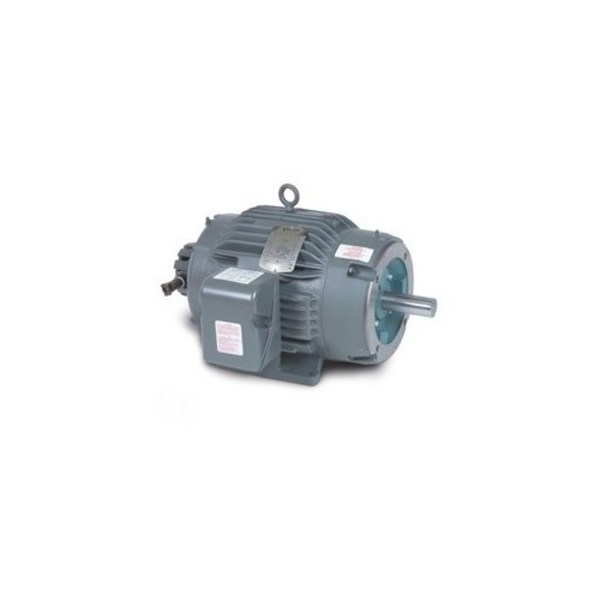

BALDOR ZDNM2237T ELECTRIC MOTOR 7.5HP 1765RPM
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: ZDNM2237T
IMS Product Code: 1787960
Packaging: Sold Individually
Description:
Baldor ZDNM2237T Electric Motor 7.5HP 1765RPM
Specfications:
- Output 7.500 hp
- Phase 3
- Synchronous Speed 1,800 rpm
- Frequency 60.00 Hz
- Voltage 460 V
- 230 V
- Frame Material Iron
- Frame 256TC
- XP Class and Group NONE
- XP Division Not Applicable
- Brand Baldor-Reliance
- Agency Approvals CSA
- UR
- Ambient Temperature 40 °C
- Auxillary Box No Auxillary Box
- Auxillary Box Lead Termination None
- Base Indicator Rigid
- Bearing Grease Type POLYREX EM (-20F +300F)
- Blower None
- Current 18.2 A @ 230 V
- 9.1 A @ 460 V
- Design Code A
- Drip Cover No Drip Cover
- Duty Rating CONT
- Efficiency @ 100% Load 91.7%
- Electrically Isolated Bearing Not Electrically Isolated
- Feedback Device Encoder
- Front Face Code Encoder/Feedback device
- Front Shaft Indicator None
- Heater Indicator No heater
- High Voltage Full Load Amps 9.1 A
- Insulation Class H
- Inverter Code Inverter duty
- KVA Code H
- Lifting Lugs Standard Lifting Lugs
- Locked Bearing Indicator Locked Bearing
- Max Speed 5,000 rpm
- Motor Lead Exit KO Box

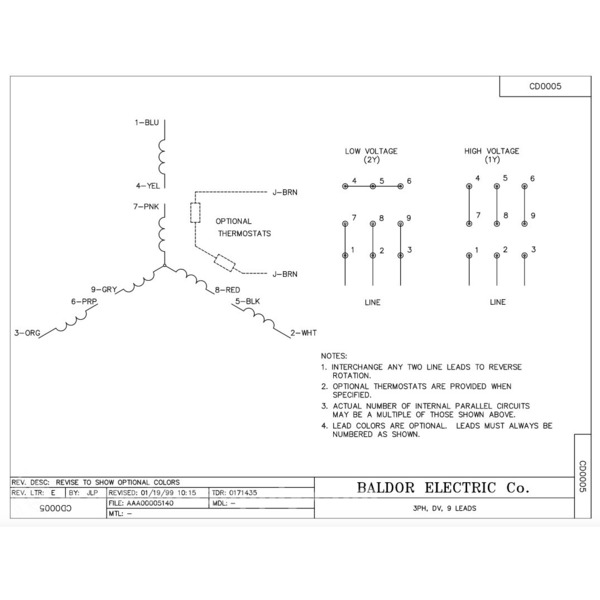

- Motor Lead Quantity/Wire Size 9 @ 12 AWG
- Motor Lead Termination Flying Leads
- Motor Standards NEMA
- Motor Type 0932M
- Number of Poles 4
- Overall Length 24.05 in
- Power Factor 81
- Product Family General Purpose
- Pulley End Bearing Type Ball
- Pulley Face Code C-Face
- Pulley Shaft Indicator Standard
- Rodent Screen None
- Service Factor 1.00
- Shaft Diameter 1.625 in
- Shaft Extension Location Pulley End
- Shaft Ground Indicator No Shaft Grounding
- Shaft Rotation Reversible
- Shaft Slinger Indicator Shaft Slinger
- Speed 1,765 rpm
- Speed Code Single Speed
- Starting Method Direct on line
- Thermal Device - Bearing None
- Thermal Device - Winding Normally Closed Thermostat
- Vibration Sensor Indicator No Vibration Sensor
- Winding Thermal 1 None
- Winding Thermal 2 None
