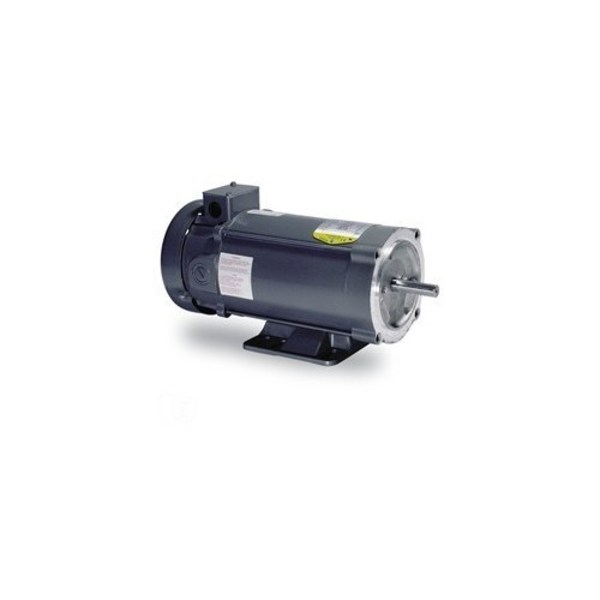

BALDOR CDP3326 MOTOR ELECTRIC .5HP 1750RPM DC 56C 3336P TENV F1
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: CDP3326
IMS Product Code: 1788171
Packaging: Sold Individually
Description:
Baldor CDP3326 Motor Electric .5Hp 1750Rpm Dc 56C 3336P Tenv F1
Specifications:
- Armature Voltage 180 V
- Base Speed 1,750 rpm
- Frame 56C
- Frame Material Steel
- Output Power 0.5 hp
- Brand Baldor-Reliance
- Agency Approvals CE
- CSA
- UR
- Ambient Temperature 40 °C
- Armature Current 2.5 A
- Armature Inertia 8.424lb-ft2
- Base Indicator Rigid
- Bearing Grease Type POLYREX EM (-20F +300F)
- Drip Cover No Drip Cover
- Duty Rating CONT
- Feedback Device No feedback
- Heater Indicator No heater
- Insulation Class F
- Lifting Lugs No Lifting Lugs
- Motor Lead Exit KO Box
- Motor Lead Quantity/Wire Size 2 @ 18 AWG, A
- Motor Lead Termination Flying Leads
- Motor Standards NEMA
- Overall Length 14.94 in
- Product Family General Purpose
- Pulley End Bearing Type Sealed Bearing
- RoHS Status RoHS Compliant
- Service Factor 1.00
- Shaft Diameter 0.625 in
- Shaft Extension Location Pulley End
- Shaft Ground Indicator No Shaft Grounding
- Shaft Rotation Reversible
- Shaft Slinger Indicator No Slinger
