AUTOMATIC VALVE L4505AAWR-AAS 5/2 SOLENOID VALVE
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L4505AAWR-AAS
IMS Product Code: 1736593
Packaging: Sold Individually
Description:

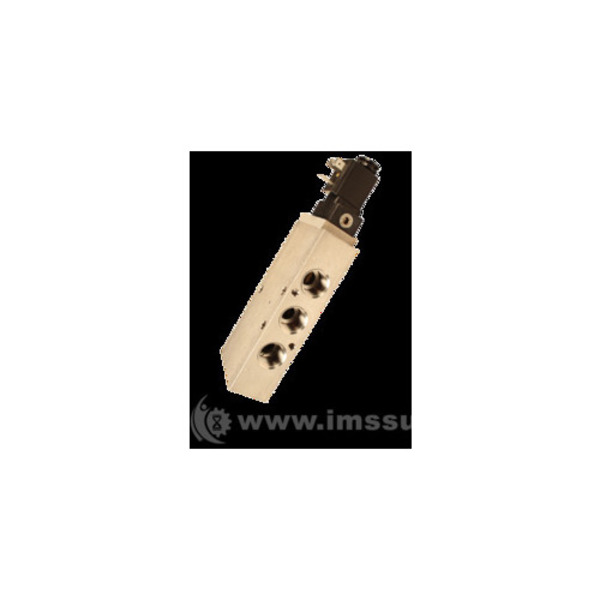

Automatic Valve L4505AAWR-AAS 5/2 Solenoid Valve, 4 Way L45 Series
- 1/8”, ¼”, 3/8 & ½” port options
- Air pilot & solenoid pilot options
- Single & Double 5/2, Double 5/3
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant
Specifications:
- Port Size: 1/2" NPT
- Body Type: Inline
- Valve Function: Single 5/2
- Actuation: Solenoid
- Series: L45
- Return Type: Spring Return
- Application: Weather-Proof
- Voltage: 120 VAC
- Electrical Connection: DIN 43650 Form B NEMA 4X
- Valve Body Material: 303 Stainless Steel
- Flow Cv l/min: Cv 4.8 (l/min 4755)
- Weight: 5.0 lbs (2.27 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
