AUTOMATIC VALVE L2004AAWR-DBSY
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L2004AAWR-DBSY
IMS Product Code: 1736214
Packaging: Sold Individually
Description:

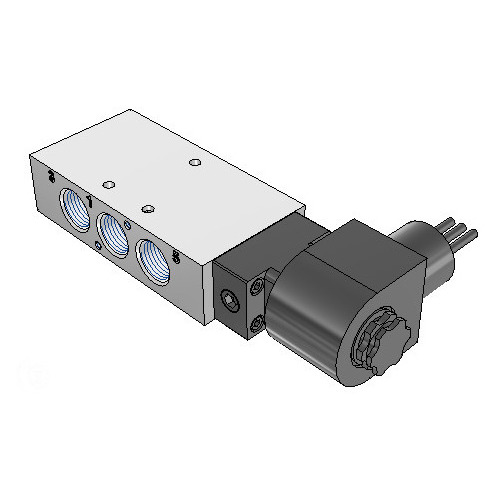

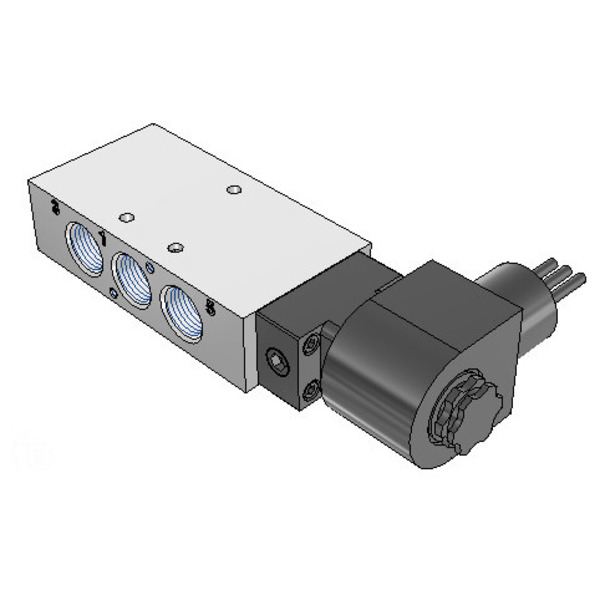

Automatic Valve L2004AAWR-DBSY L20 Series Valve, Solenoid, Single 5/2, 3/8" NPT, Spring Return, Explosion-Proof, 24 VDC, 1/2" Conduit, 24" Leads, 303 Stainless Steel
- 1/8”, ¼”, 3/8 & ½” port options
- Air pilot & solenoid pilot options
- Single & Double 5/2, Double 5/3
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant

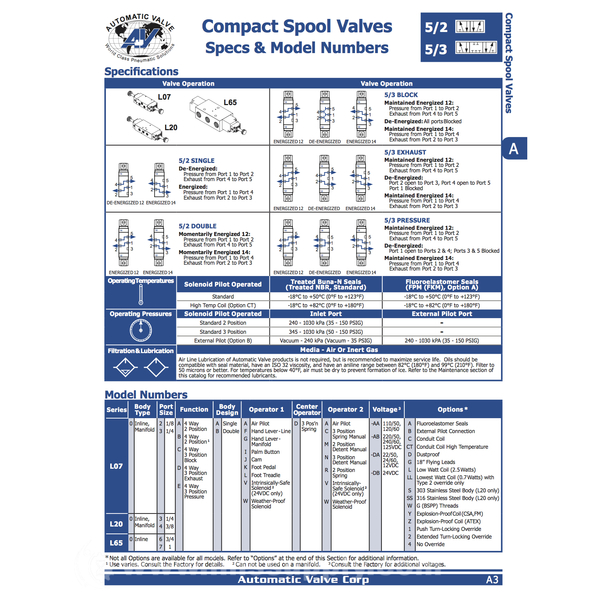

- Additional models available, please view downloadable literature
Specifications:
- Port Size: 3/8" NPT
- Body Type: Inline
- Valve Function: Single 5/2
- Actuation: Solenoid
- Series: L20
- Return Type: Spring Return
- Application: Explosion-Proof
- Voltage: 24 VDC
- Electrical Connection: 1/2" Conduit with 24" Leads
- Valve Body Material: 303 Stainless Steel
- Hazardous Class: CSA and FM approved
- Class I, Division 1 Groups: A, B, C, D
- Class I, Division 2 Groups: A, B, C, D
- Class II, III, Division 1 Groups: E, F, G
- Class II, III, Division 2 Groups: E, F, G
- ATEX Compliance: CL. I, Zone1 ExmIIT4; AExmII
- NEMA Rating: NEMA 4, 4X, 7C, 7D, 9
- Flow Cv l/min: Cv 1.8 (l/min 1770)
- Weight: 2.0 lbs (0.91 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
