AUTOMATIC VALVE L2003GAWR-DAB
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L2003GAWR-DAB
IMS Product Code: 1737152
Packaging: Sold Individually
Description:

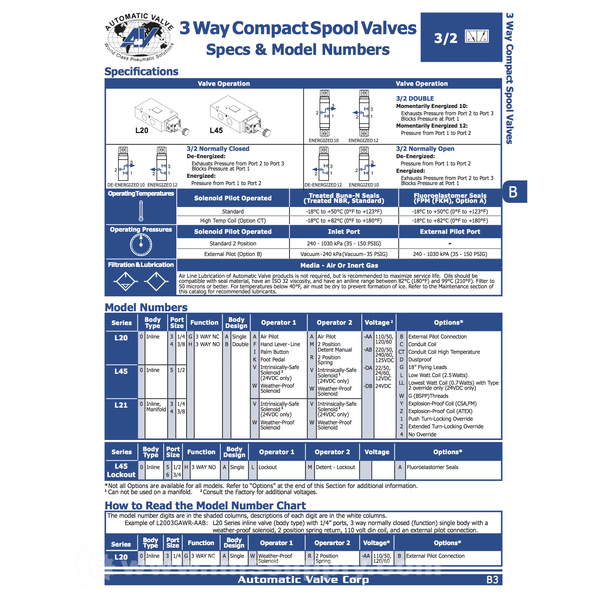

Automatic Valve L2003GAWR-DAB L20 Series Valve, Solenoid, Single 3/2, 1/4" NPT, Spring Return, 12 VDC, DIN, Externally Piloted
- 1/8”, ¼”, 3/8 & ½” port options
- Air pilot & solenoid pilot options
- Single & Double 5/2, Double 5/3
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant
- Additional models available, please view downloadable literature
Specifications:
- Port Size: 1/4" NPT
- Body Type: Inline
- Valve Function: Single 3/2
- Default Position: Normally Closed
- Actuation: Solenoid
- Series: L20
- Return Type: Spring Return
- Application: Weather-Proof
- Voltage: 12 VDC
- Electrical Connection: DIN 43650 Form B NEMA 4X
- Valve Body Material: Aluminum
- Flow Cv l/min: Cv 1.8 (l/min 1770)
- Weight: 1.3 lbs (0.59 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
