AUTOMATIC VALVE L2003AAWR-DBY1 5/2 SOLENOID VALVE
Starting At: $115.11
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L2003AAWR-DBY1
IMS Product Code: 1735905
Packaging: Sold Individually
Description:
4 Way L20 Series
Actuation: Solenoid Pilot
Mounting style: Inline
Function: 5/2
Port size: 1/4″ NPT
Body Material: Aluminum
Flow: Cv 1.8 (l/min 1770)
Operator 1: Solenoid
Operator 2: Spring Return
Voltage: Explosion-Proof 24VDC
Electrical details: 1/2″ Conduit with 24″ Leads
CSA and FM approved
CL. I, Div.1, Groups A, B, C, D
CL. I, Div.2, Groups A, B, C, D
CL. II, III, Div.1, Groups E, F, G
CL. II, III, Div.2, Groups E, F, G
CL. I, Zone1 ExmIIT4; AExmII
T4, Ta=-20oC to +60oC
NEMA 4, 4X, 7C, 7D, 9
Override: Slotted Turn Locking Override

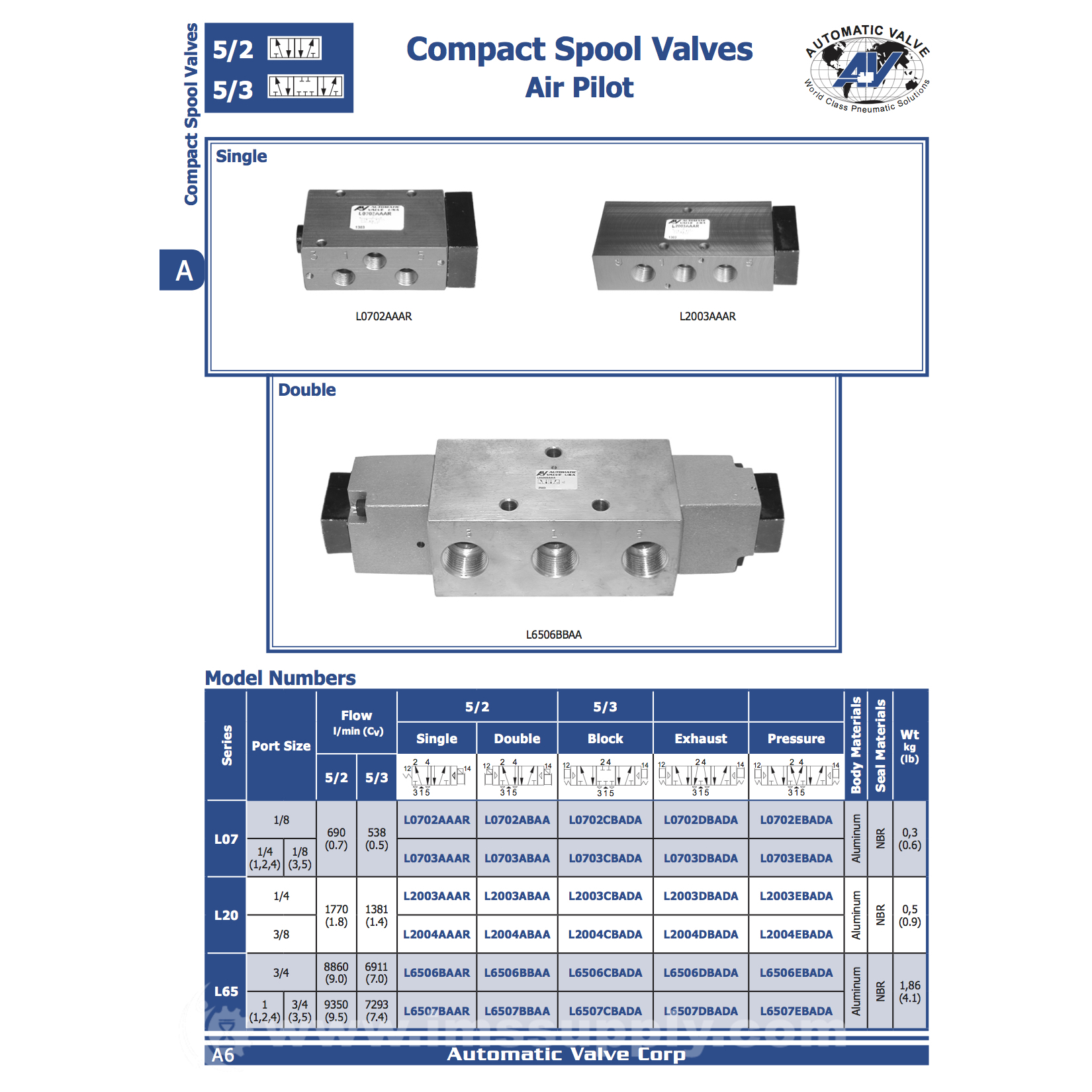

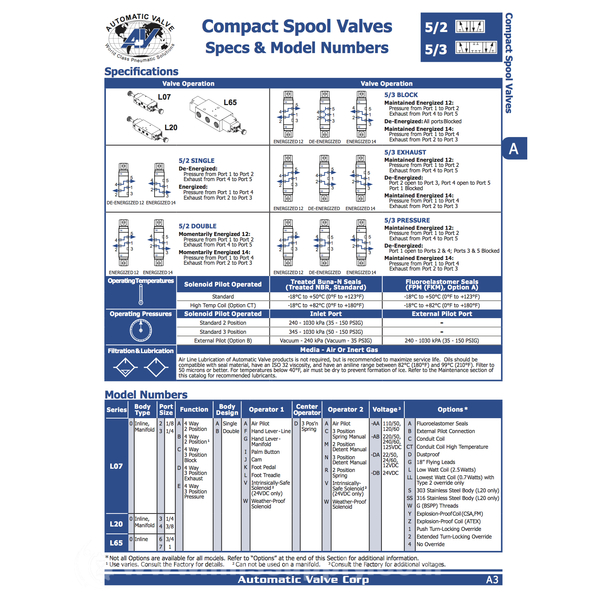

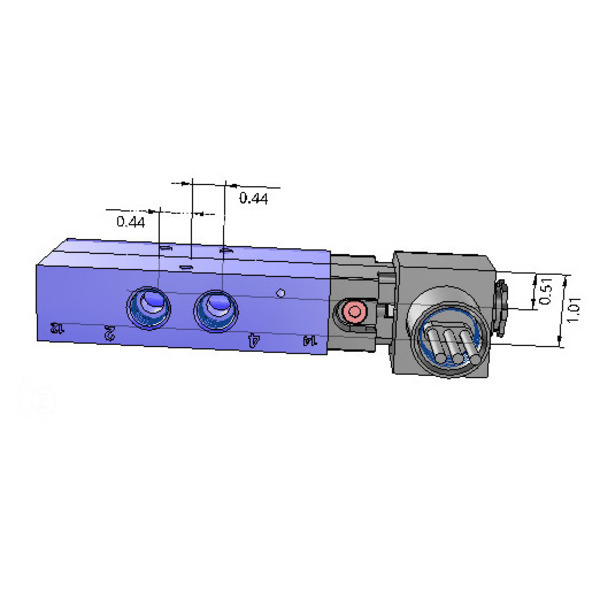

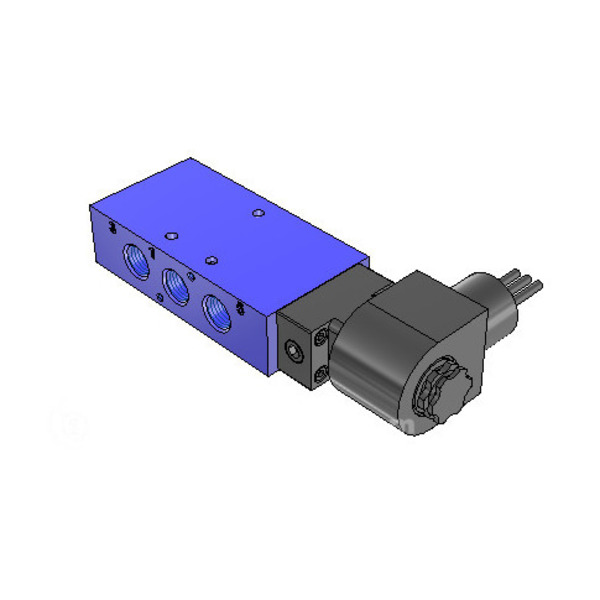

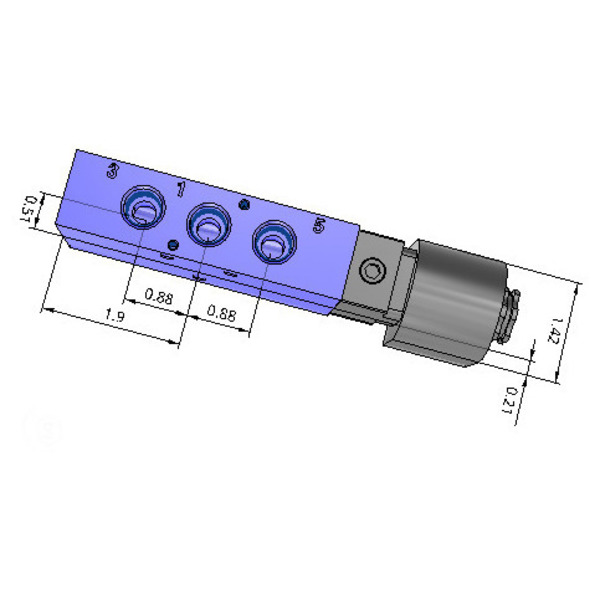

See Pictures for More Information
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
