AUTOMATIC VALVE L0702DBWDW-DA
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L0702DBWDW-DA
IMS Product Code: 1736462
Packaging: Sold Individually
Description:

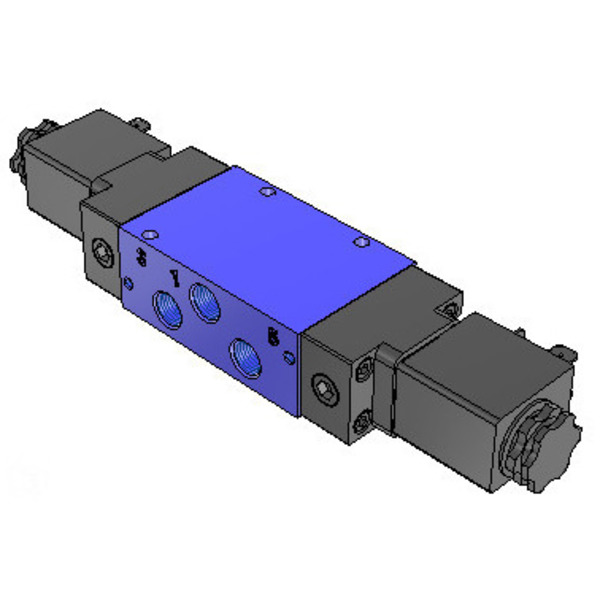

Automatic Valve L0702DBWDW-DA L07 Series Valve, Double 5/3, Exhaust Center, 1/8” NPT
- 1/8”, ¼”, 3/8 & ½” port options
- Air pilot & solenoid pilot options
- Single & Double 5/2, Double 5/3
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant

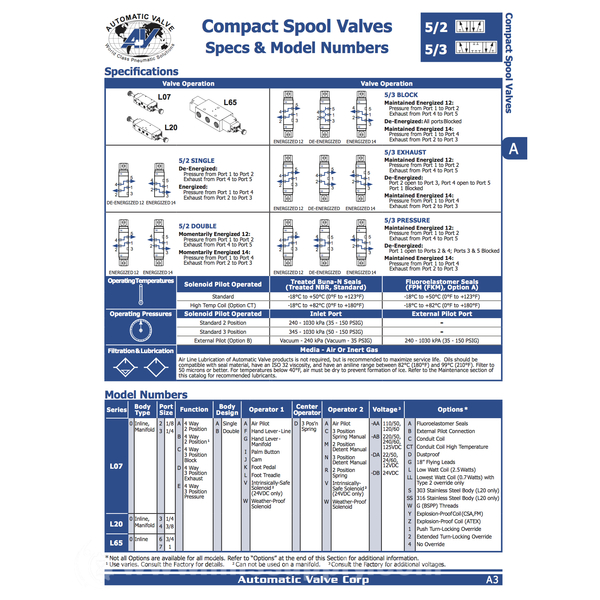

- Additional models available, please view downloadable literature
Specifications:
- Port Size: 1/8" NPT
- Body Type: Inline
- Series: L07
- Valve Body Material: Aluminum
- Flow Cv l/min: Cv 0.5 (l/min 538)
- Weight: 1.0 lbs (0.45 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
