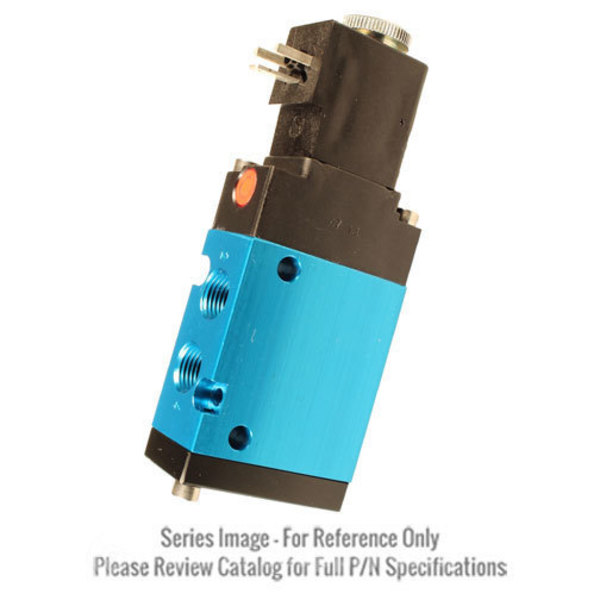

AUTOMATIC VALVE L0502AAWR-DA 5/2 SOLENOID VALVE
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L0502AAWR-DA
IMS Product Code: 1736966
Packaging: Sold Individually
Description:
Automatic Valve L0502AAWR-DA L05 Series Valve, Solenoid, Single 5/2, 1/8" NPT, Spring Return, 12 VDC, DIN
- 1/8”, ¼”, 3/8 & ½” port options
- Air pilot & solenoid pilot options
- Single & Double 5/2, Double 5/3
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant

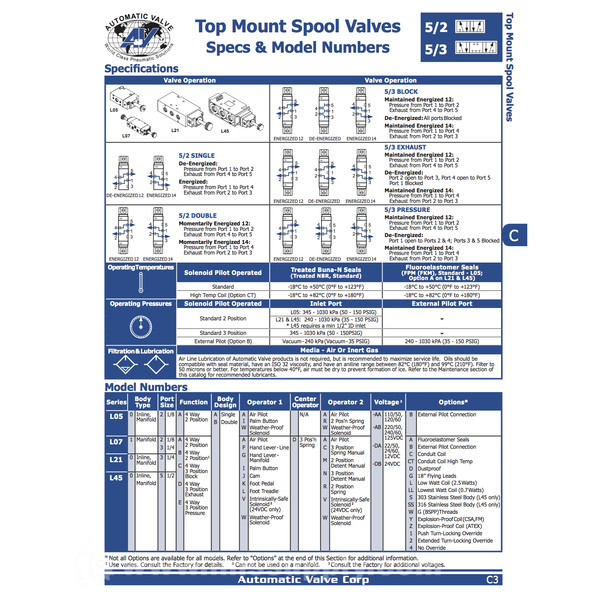

- Additional models available, please view downloadable literature
Specifications:
- Body Type: Inline
- Valve Function: Single 5/2
- Actuation: Solenoid
- Series: L05
- Return Type: Spring Return
- Application: Weather-Proof
- Voltage: 12 VDC
- Electrical Connection: DIN 43650 Form C NEMA 4X
- Valve Body Material: Aluminum
- Flow Cv l/min: Cv 0.4 (l/min 390)
- Weight: 0.5 lbs (0.23 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
