AUTOMATIC VALVE K02-004-DB K02 SERIES VALVE, DIRECT SOLENOID
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: K02-004-DB
IMS Product Code: 1737369
Packaging: Sold Individually
Description:

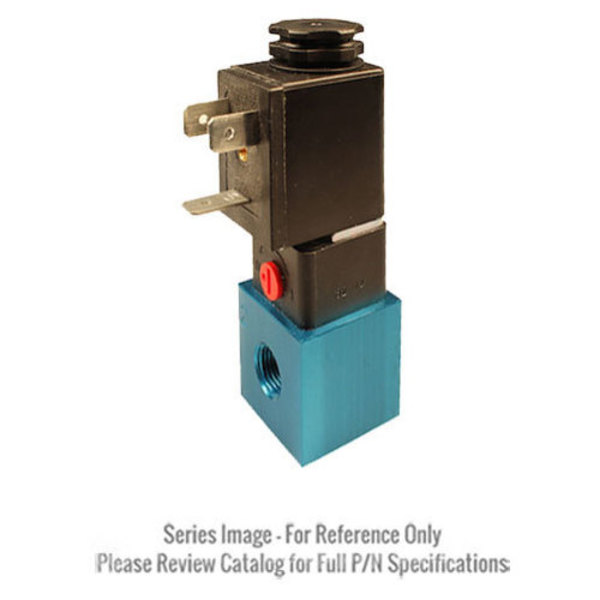

Automatic Valve K02-004-DB K02 Series Valve, Direct Solenoid, Single 3/2, Normally Closed, 1/8" NPT, 120 VAC, DIN
- Single 3/2 with spring return
- 1/8” & ¼” port options
- AC & DC solenoid coil options
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant
Specifications:
- Port Size: 1/8" NPT
- Actuation: Direct Solenoid
- Body Type: Inline
- Valve Function: Single 3/2
- Default Position: Normally Closed
- Series: K02
- Return Type: Spring Return
- Application: Weather-Proof
- Voltage: 24 VDC
- Electrical Connection: DIN 43650 Form B NEMA 4X
- Flow Cv l/min: Cv 0.1 (l/min 100)
- Weight: 0.65 lbs (0.29 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
