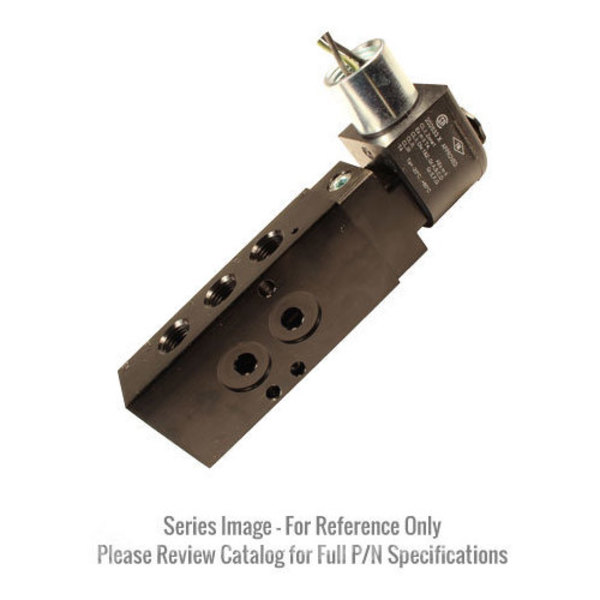

AUTOMATIC VALVE D2013AAWR-AAY D20 SERIES NAMUR VALVE
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: D2013AAWR-AAY
IMS Product Code: 1735707
Packaging: Sold Individually
Description:
Automatic Valve D2013AAWR-AAY D20 Series Namur Valve, Right Solenoid, Single 5/2, 1/4" NPT, Spring Return, Explosion-Proof, 120 VAC, 1/2" Conduit, 24" Leads, M5 Bolts
- Single 5/2 with spring return
- Left & right side solenoid options
- AC & DC solenoid coil options
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant

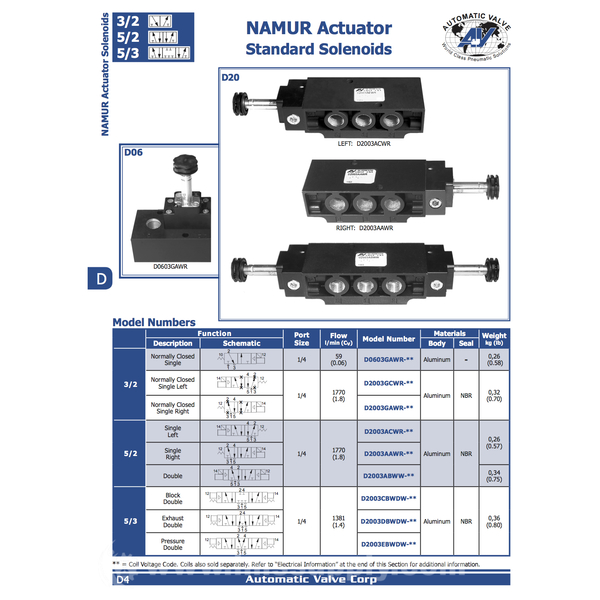

- Additional models available, please view downloadable literature
Specifications:
- Port Size: 1/4" NPT
- Body Type: Direct Actuator NAMUR
- Valve Function: Single 5/2
- Actuation: Solenoid
- Solenoid Location: Right
- Series: D20
- Return Type: Spring Return
- Application: Explosion-Proof
- Voltage: 120 VAC
- Electrical Connection: 1/2" Conduit with 24" Leads
- Valve Body Material: Aluminum
- Included Mounting Bolts: M5
- Body Construction: Bar Stock (Low Profile)
- Transition Plate: Not Included
- Hazardous Class: CSA and FM approved
- Class I, Division 1 Groups: A, B, C, D
- Class I, Division 2 Groups: A, B, C, D
- Class II, III, Division 1 Groups: E, F, G
- Class II, III, Division 2 Groups: E, F, G
- ATEX Compliance: CL. I, Zone1 ExmIIT4; AExmII
- NEMA Rating: NEMA 4, 4X, 7C, 7D, 9
- Flow Cv l/min: Cv 1.8 (l/min 1770)
- Weight: 1.0 lbs (0.45 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
