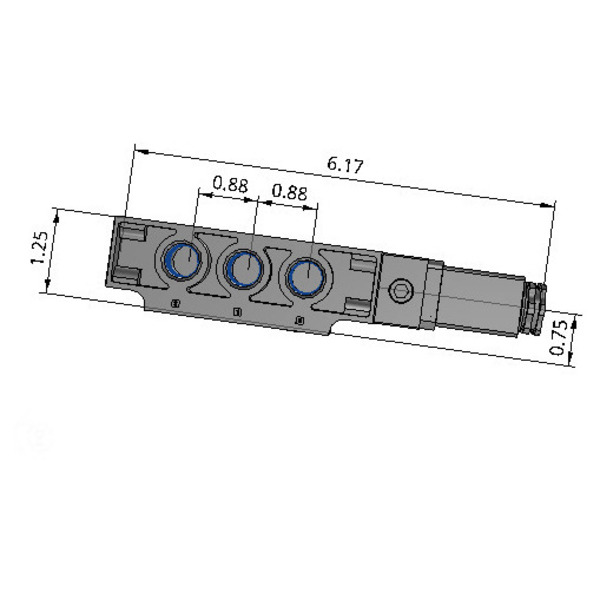

AUTOMATIC VALVE D2003ACWR-AAP 5/2 SOLENOID VALVE
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: D2003ACWR-AAP
IMS Product Code: 1735577
Packaging: Sold Individually
Description:
Automatic Valve D2003ACWR-AAP D20 Series Namur Valve, Left Solenoid, Single 5/2, 1/4" NPT, Spring Return, 120 VAC, DIN, M5 Bolts
- Single 5/2 with spring return
- Left & right side solenoid options
- AC & DC solenoid coil options
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant
- Additional models available, please view downloadable literature
Specifications:
- Port Size: 1/4" NPT
- Body Type: Direct Actuator NAMUR
- Valve Function: Single 5/2
- Actuation: Solenoid
- Solenoid Location: Left
- Series: D20
- Return Type: Spring Return
- Application: Weather-Proof
- Voltage: 120 VAC
- Electrical Connection: DIN 43650 Form B NEMA 4X
- Valve Body Material: Aluminum
- Included Mounting Bolts: M5
- Body Construction: Bar Stock
- Transition Plate: Included
- Flow Cv l/min: Cv 1.8 (l/min 1770)
- Weight: 1.0 lbs (0.45 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
