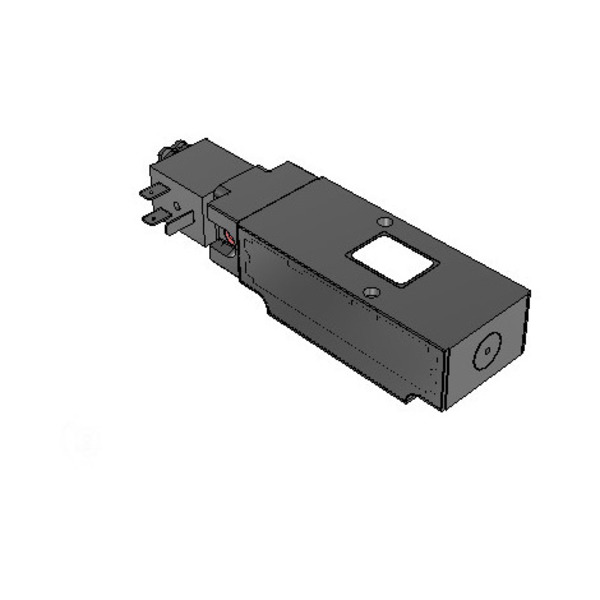

AUTOMATIC VALVE D2003AAWR-DBG 5/2 SOLENOID VALVE
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: D2003AAWR-DBG
IMS Product Code: 1735544
Packaging: Sold Individually
Description:
Automatic Valve D2003AAWR-DBG D20 Series Namur Valve, Right Solenoid, Single 5/2, 1/4" NPT, Spring Return, 24 VDC, 18" Leads, M5 Bolts
- Single 5/2 with spring return
- Left & right side solenoid options
- AC & DC solenoid coil options
- Weather-Proof options are NEMA 4X rated
- Explosion-Proof options are CSA & FM approved and ATEX Compliant

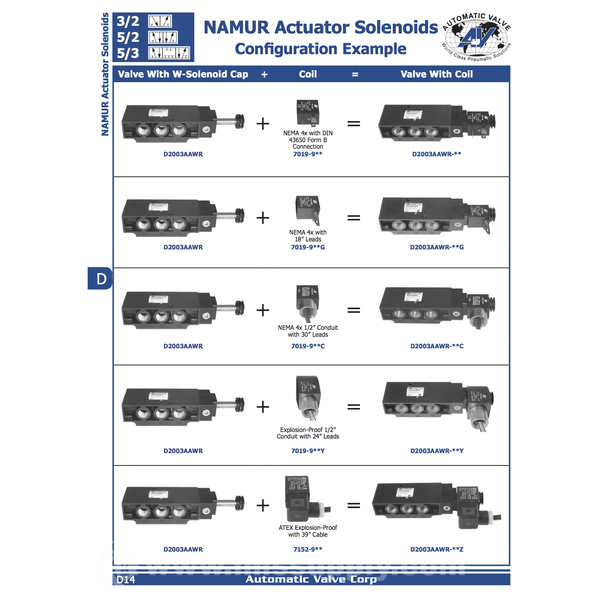

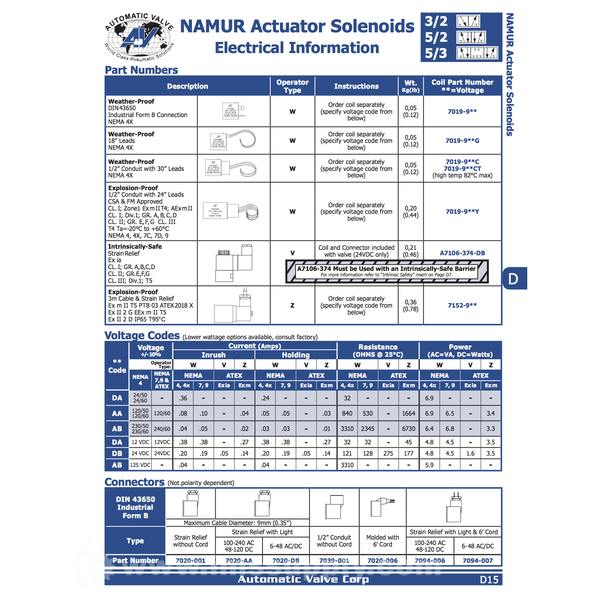

- Additional models available, please view downloadable literature
Specifications:
- Port Size: 1/4" NPT
- Body Type: Direct Actuator NAMUR
- Valve Function: Single 5/2
- Actuation: Solenoid
- Solenoid Location: Right
- Series: D20
- Return Type: Spring Return
- Application: Weather-Proof
- Voltage: 24 VDC
- Electrical Connection: 18" Leads NEMA 4X
- Valve Body Material: Aluminum
- Included Mounting Bolts: M5
- Body Construction: Bar Stock
- Transition Plate: Not Included
- Flow Cv l/min: Cv 1.8 (l/min 1770)
- Weight: 1.0 lbs (0.45 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days

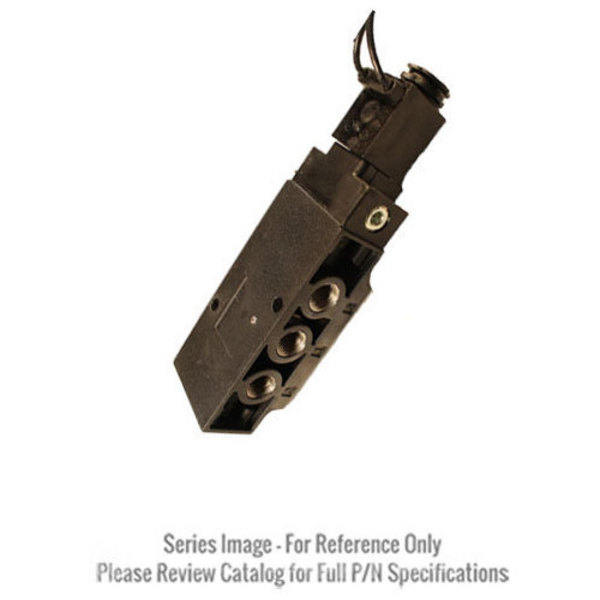

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
