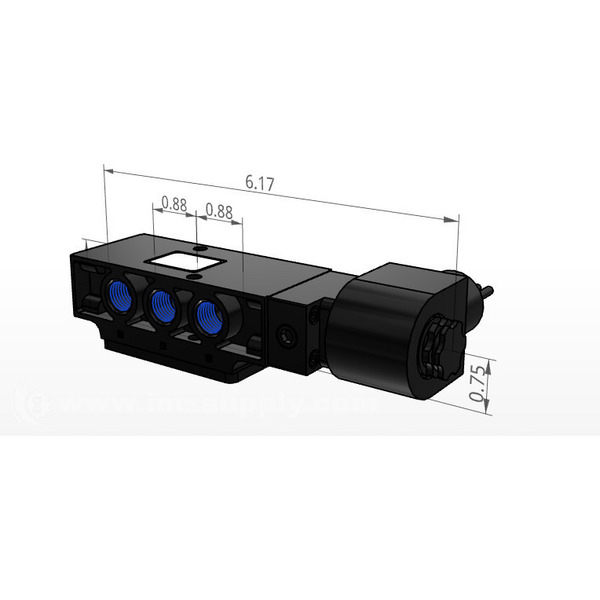

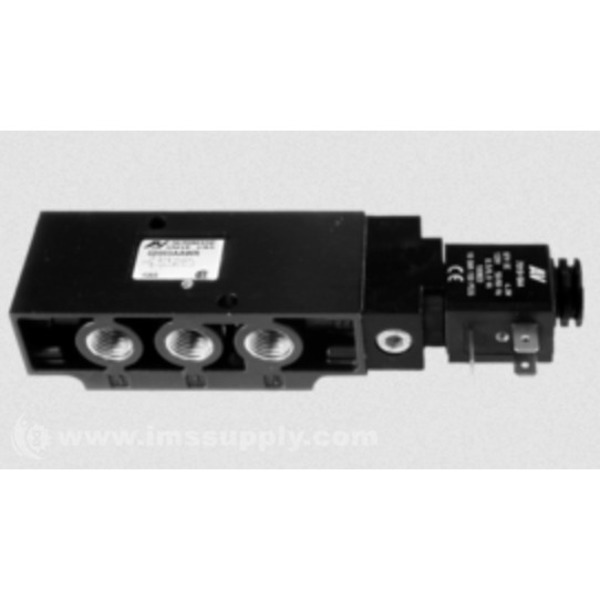

AUTOMATIC VALVE D2003AAWR-AAPY NAMUR INTERFACE D20 SERIES
Quick Overview
Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: D2003AAWR-AAPY
IMS Product Code: 1922071
Packaging: Sold Individually
Description:
Automatic Valve D2003AAWR-AAPY NAMUR Interface D20 Series
Specifications:
- Port Size: 1/4" NPT
- Body Type: Direct Actuator NAMUR
- Valve Function: Single 5/2
- Actuation: Solenoid
- Solenoid Location: Right
- Series: D20
- Return Type: Spring Return
- Application: Explosion-Proof
- Voltage: 120 VAC
- Electrical Connection: 1/2" Conduit with 24" Leads
- Valve Body Material: Aluminum
- Included Mounting Bolts: M5
- Body Construction: Bar Stock
- Transition Plate: Included
- Hazardous Class: CSA and FM approved
- Class I, Division 1 Groups: A, B, C, D
- Class I, Division 2 Groups: A, B, C, D
- Class II, III, Division 1 Groups: E, F, G
- Class II, III, Division 2 Groups: E, F, G
- ATEX Compliance: CL. I, Zone1 ExmIIT4; AExmII
- NEMA Rating: NEMA 4, 4X, 7C, 7D, 9
- Flow Cv l/min: Cv 1.8 (l/min 1770)
- Weight: 1.0 lbs (0.45 kg)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
