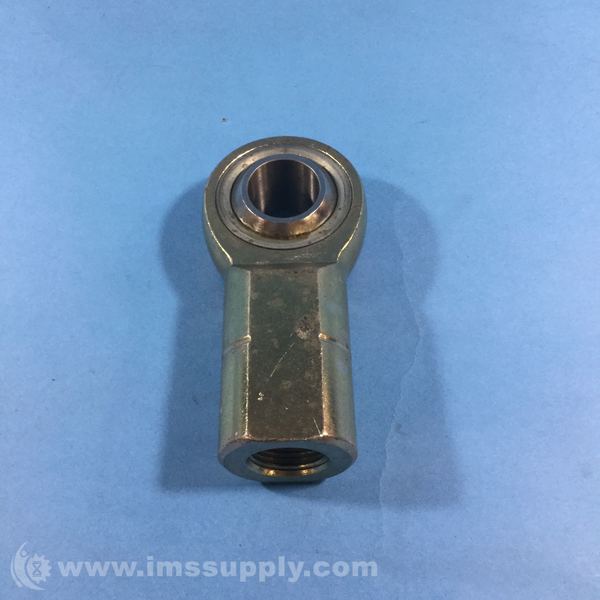

AURORA BEARING MW-M25 SPHERICAL ROD END

Call For Quote

Quick Overview

Manufactured By: AURORA BEARING
Manufacturer Part Number: MW-M25
IMS Product Code: 1814498
Packaging: Sold Individually

Description:

Aurora Bearing MW-M25 Spherical Rod End, Female Threaded Right Hand, Grade: Precision, Bore Diameter: 25 mm, Shank Thread Size: M24 x 2.0

Specifications:

  • Bore diameter: 25 mm
  • Radial static load capacity: 104435 N
  • Misalignment angle: 19 º
  • Head diameter: 60 mm
  • Shank thread length: 48 mm
  • Head width: 22.00 mm
  • Rod end type: Female Threaded
  • Ball width: 31 mm
  • Shank thread size: M24 x 2.0
  • Length to ball center: 95 mm
  • Thread direction: Right Hand
  • Overall height: 125 mm
  • Grade: Precision
  • Series: MW
  • Thread type: -6H
  • Harmonization code: 8483.30.8055
  • Housing material: Carbon Steel
  • Ball material: Alloy Steel
  • Weight: 0.7 kg
  • Race material: Steel
