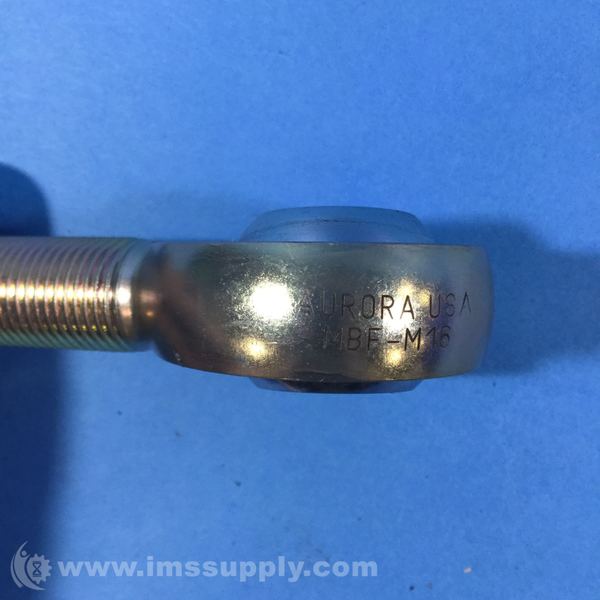

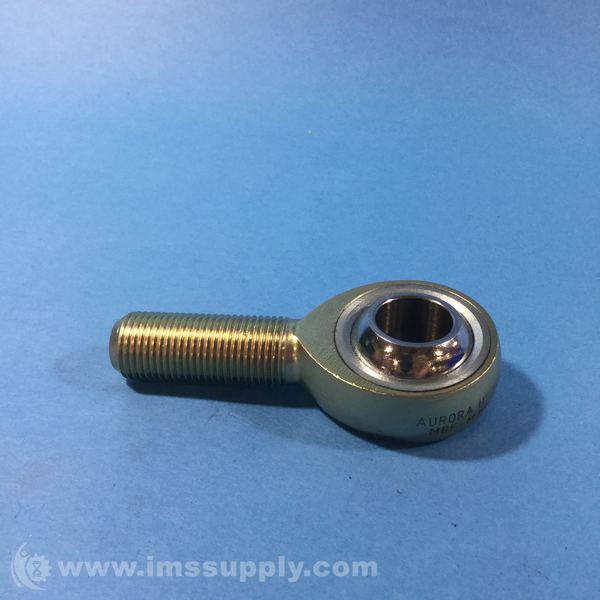

AURORA BEARING MBF-M16 SPHERICAL ROD END

Call For Quote

Quick Overview

Manufactured By: AURORA BEARING
Manufacturer Part Number: MBF-M16
IMS Product Code: 1814490
Packaging: Sold Individually

Description:

Aurora Bearing MBF-M16 Spherical Rod End, Male Threaded Left Hand, Bore Diameter: 16 mm, Shank Thread Size: M16 x 1.5

Specifications:

  • Bore diameter: 16 mm
  • Head diameter: 38 mm
  • Misalignment angle: 23 º
  • Head width: 14.25 mm
  • Shank thread length: 40 mm
  • Ball width: 21 mm
  • Rod end type: Male Threaded
  • Length to ball center: 66 mm
  • Shank thread size: M16 x 1.5
  • Overall height: 85 mm
  • Thread direction: Left Hand
  • Series: MB
  • Thread type: -6g-LH
  • Harmonization code: 8483.30.8055
  • Housing material: Carbon Steel
  • Ball material: Alloy Steel
  • Weight: 0.173 kg
  • Radial static load capacity: 32223 N
