ASSURED AUTOMATION N300FCSB7A 150F-300F SERIES 2-WAY BALL VALVE
Starting At: $15,904.98
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: N300FCSB7A
IMS Product Code: 1860652
Packaging: Sold Individually
Description:

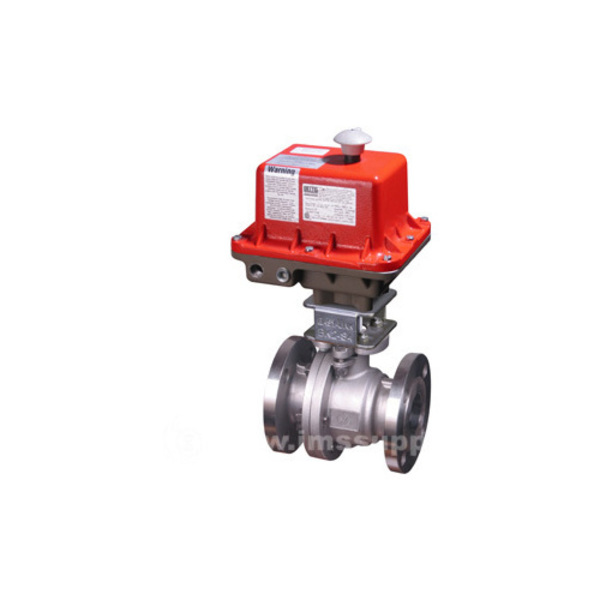

Assured Automation N300FCSB7A 150F-300F Series ANSI Flanged 2-way Ball Valve
Assured Automation’s 150F and 300F Series Ball Valves Offer A Unique Design That is Ideal for Process and Petrochemical Applications.
Specifications:
- Body Material: Carbon steel
- Size and Connection: 8 inch 300# Flange
- Seal Material: TFM
- Seat Material: 50/50 (SS/TFE)
- Port: Full-port
- Actuator: B7 series explosion Proof (NEMA 4,4X,7) 120VAC; Speed 72 Sec 90deg; 100% duty cycle; Internal wire terminals; (model BEEM840-72-C7-02-001)(*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
