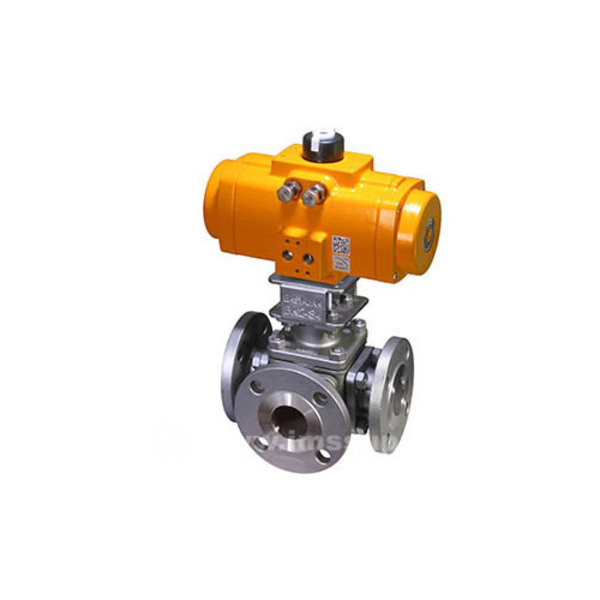

ASSURED AUTOMATION MMPF150SFFF6S1 MPF SERIES SS 3-WAY BALL VALVE
Starting At: $17,766.84
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: MMPF150SFFF6S1
IMS Product Code: 1872703
Packaging: Sold Individually
Description:
Assured Automation MMPF150SFFF6S1 MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
- Body Material: Stainless steel
- Size and Connection: 6 inch 150# ANSI Flange
- Seats: TFM
- Port: Full-port (T shaped bore)
- Flow Plan: F
- Actuator: F series rack and pinion actuator, spring return (Fail to Position 1) sized for use with 60 psi supply air (ELPSA4000-10) (*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
