ASSURED AUTOMATION KMPF300SFAB7A MPF SERIES SS 3-WAY BALL VALVE
Starting At: $11,014.64
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: KMPF300SFAB7A
IMS Product Code: 1873390
Packaging: Sold Individually
Description:

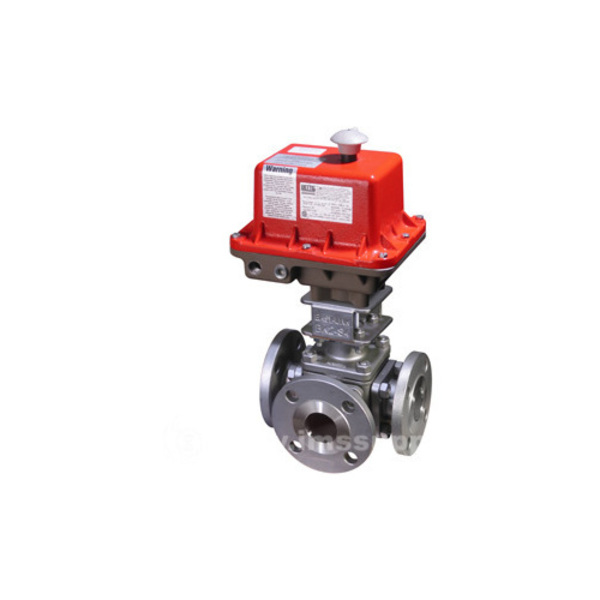

Assured Automation KMPF300SFAB7A MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
Body Material: Stainless steel
Size and Connection: 4 inch 300# ANSI Flange
Seats: TFM
Port: Full-port (L shaped bore)
Flow Plan: A
Actuator: B7 series explosion Proof (NEMA 4,4X,7) 120VAC; Speed 60 Sec 90deg; 100% duty cycle; Internal wire terminals; (model BEEM810-60-C7-02-001)
(*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
