ASSURED AUTOMATION JHPL11RK4A HIGH PERFORMANCE BUTTERFLY VALVE
Starting At: $1,846.39
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: JHPL11RK4A
IMS Product Code: 1879271
Packaging: Sold Individually
Description:

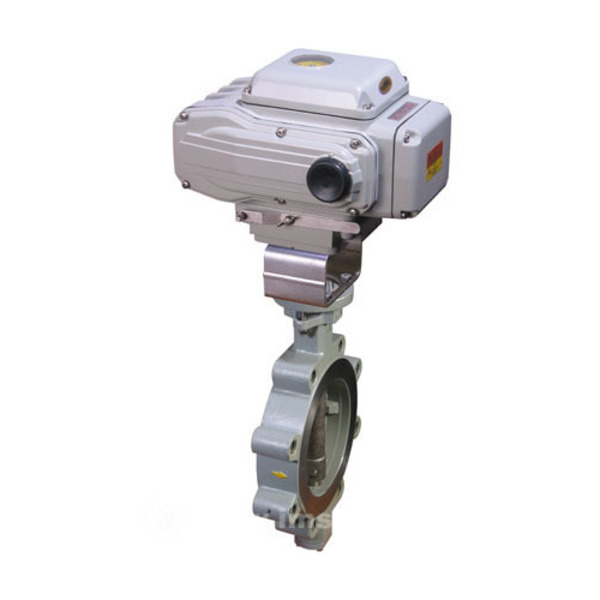

Assured Automation JHPL11RK4A High Performance Butterfly Valve, HP Series
The HP Series is a high performance soft seated, metal seated, fire safe butterfly valve. Body material is either Carbon steel or 316 Stainless Steel. Connections are either wafer style (HPW) or lug style (HPL) and are either 150 or 300 lb. ANSI rated. It can be equipped with a manual handle or with pneumatic or electric actuators. A full range of accessory items are available including limit switches, solenoid valves, positioners manual override devices, and bolt and flange kits.
Specifications:
Body Material: Carbon Steel (A216-WCB)
Size and Connection: 3 inch ANSI Class 150 Lugged Flange
Seal Material: RPTFE
Disc: Stainless Steel
Actuator: K4 series weatherproof (NEMA 4) 120VAC; Aluminum alloy housing; Speed 25 Sec 90deg; 100% duty cycle; Internal wire terminals; (model KOUNIC10-AC120-L-SH-IS0)
(*actuator sized for applications up to 150 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
