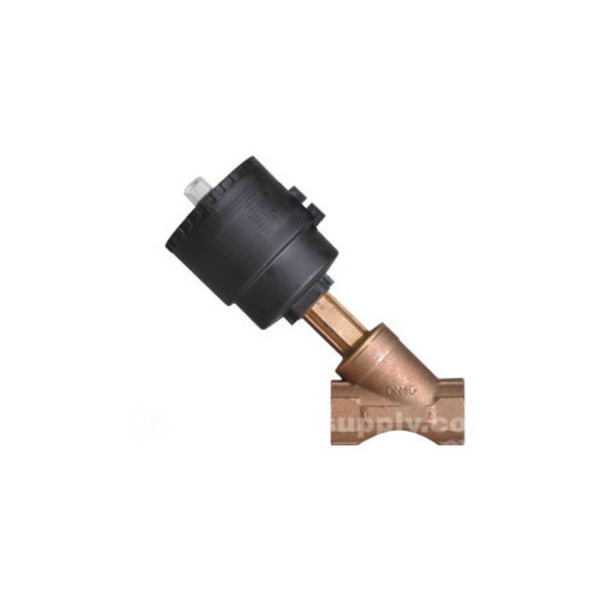

ASSURED AUTOMATION J9SPG2148 ANGLE SEAT VALVE
Starting At: $337.61
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: J9SPG2148
IMS Product Code: 1874073
Packaging: Sold Individually
Description:
Assured Automation J9SPG2148 Angle Seat Valve, Normally Closed with Bi-Directional Flow (2 springs in head)
The Angle Seat Valve is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also.) The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life.
Specifications:
Body Material: Bronze
Size and Connection: 1 1/2 inch NPT
Head Size: DN90
Seats and Seal Material: PTFE
Actuator Function: Normally CLOSED with bi-directional flow (2 springs)(*actuator sized for max. line pressure of 145 psi for 80 psi supply air and 95 psi for 60psi supply air)
Actuator Ports: 1/8 inch NPT ports
*Max. 150 PSIG for ALL STEAM APPLICATIONS
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
