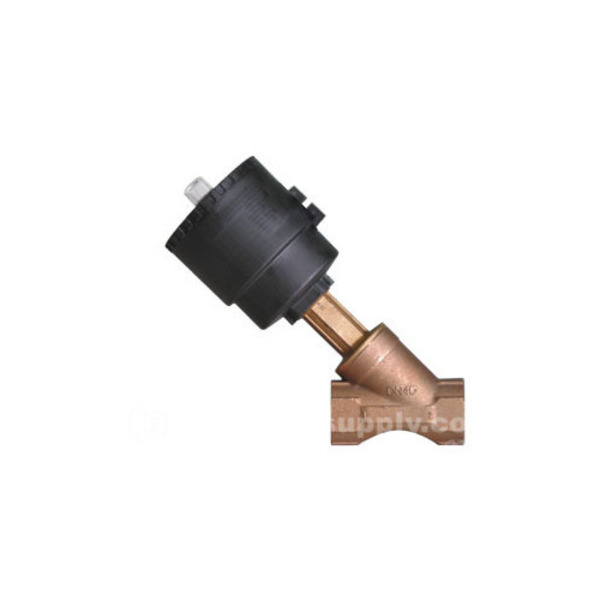

ASSURED AUTOMATION J9APG1807 ANGLE SEAT VALVE
Starting At: $239.33
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: J9APG1807
IMS Product Code: 1874628
Packaging: Sold Individually
Description:
Assured Automation J9APG1807 Angle Seat Valve, Normally Open with Flow from Below the Plug (1 spring in head)
The Angle Seat Valve is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also.) The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life.
Specifications:
Body Material: Bronze
Size and Connection: 1 1/4 inch metric G Threads
Head Size: DN63
Seats and Seal Material: PTFE
Actuator Function: Normally OPEN with flow from below plug (1 spring)
Actuator Ports: 1/8 inch metric G ports
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
