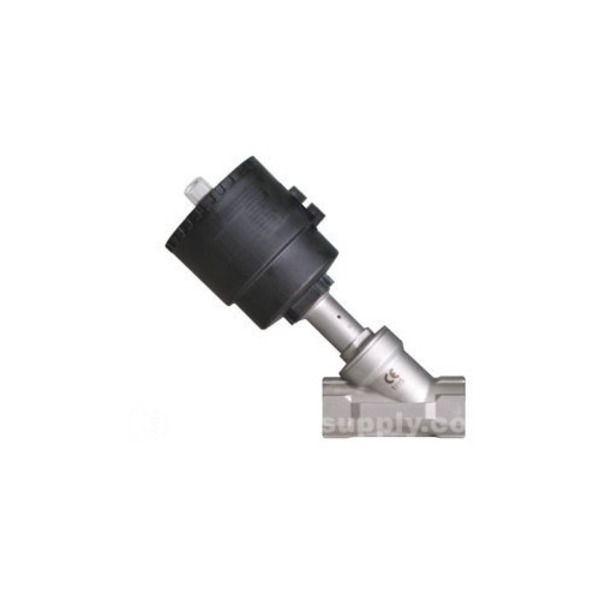

ASSURED AUTOMATION J4APG2349 ANGLE SEAT VALVE
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: J4APG2349
IMS Product Code: 1874045
Packaging: Sold Individually
Description:
Assured Automation J4APG2349 Angle Seat Valve, Normally Closed with Flow from Above the Plug (1 spring in head)
The Angle Seat Valve is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also.) The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life.
Specifications:
Body Material: 316 Stainless Steel
Size and Connection: 2 inch NPT
Head Size: DN110
Seats and Seal Material: PTFE
Actuator Function: Normally OPEN with flow from below plug (1 spring)(*actuator sized for max. line pressure of 232 psi for 80 psi supply air and 150 psi for 60psi supply air)
Actuator Ports: 1/8 inch NPT ports
*Max. 150 PSIG for ALL STEAM APPLICATIONS
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
