ASSURED AUTOMATION J150FCFS4UV 150F-300F SERIES 2-WAY BALL VALVE
Starting At: $1,983.80
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: J150FCFS4UV
IMS Product Code: 1858815
Packaging: Sold Individually
Description:

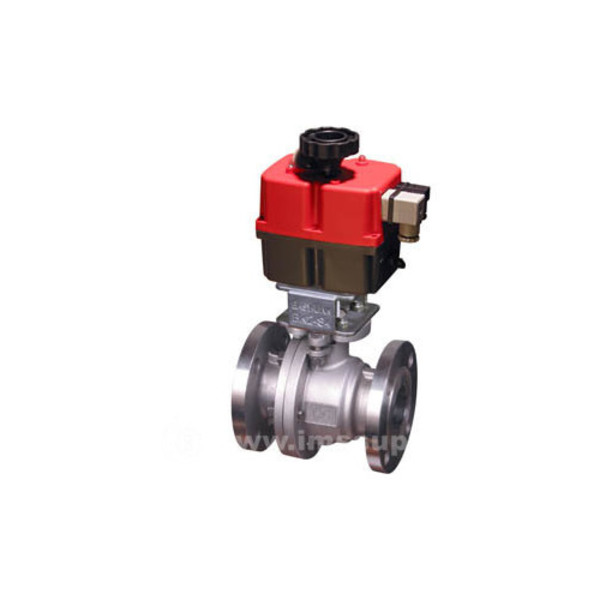

Assured Automation J150FCFS4UV 150F-300F Series ANSI Flanged 2-way Ball Valve
Assured Automation’s 150f and 300f Series Ball Valves Offer A Unique Design That Is Ideal for Process and Petrochemical Applications.
Specifications:
- Body Material: Carbon steel
- Size and Connection: 3 inch 150# Flange
- Seal Material: TFM
- Seat Material: TFM
- Port: Full-port
- Actuator: S4 series weatherproof (NEMA 4/4X) Universal Voltage (24 to 240VAC/DC); Anti-corrosive polyamide housing; Speed 33 Sec 90deg; 75% duty cycle; PG9 cord grip DIN connectors; (model S41200UV19)(*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
