ASSURED AUTOMATION HMPF300SFGB7B MPF SERIES SS 3-WAY BALL VALVE
Starting At: $5,134.22
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: HMPF300SFGB7B
IMS Product Code: 1873450
Packaging: Sold Individually
Description:

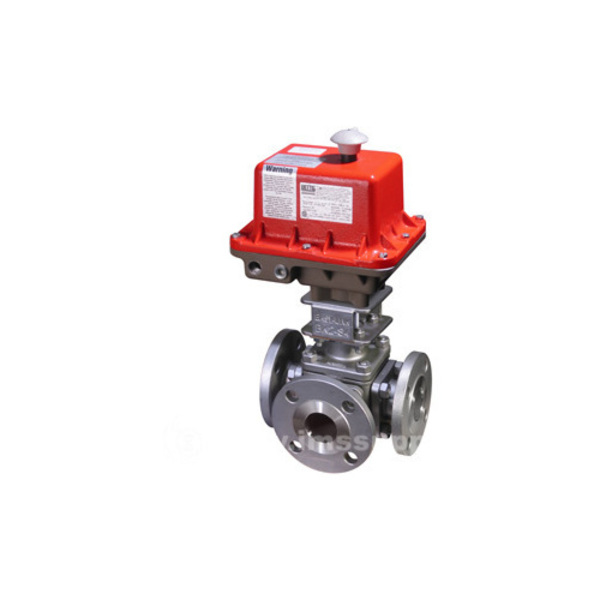

Assured Automation HMPF300SFGB7B MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
Body Material: Stainless steel
Size and Connection: 2 inch 300# ANSI Flange
Seats: TFM
Port: Full-port (T shaped bore)
Flow Plan: G
Actuator: B7 series explosion Proof (NEMA 4,4X,7) 24VDC; Speed 15 Sec 90deg; 100% duty cycle; Internal wire terminals; (model BEEM500F-15-C7-11-001)
(*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
