ASSURED AUTOMATION HMPF150CFEK4A MPF SERIES SS 3-WAY BALL VALVE
Starting At: $2,653.84
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: HMPF150CFEK4A
IMS Product Code: 1872243
Packaging: Sold Individually
Description:

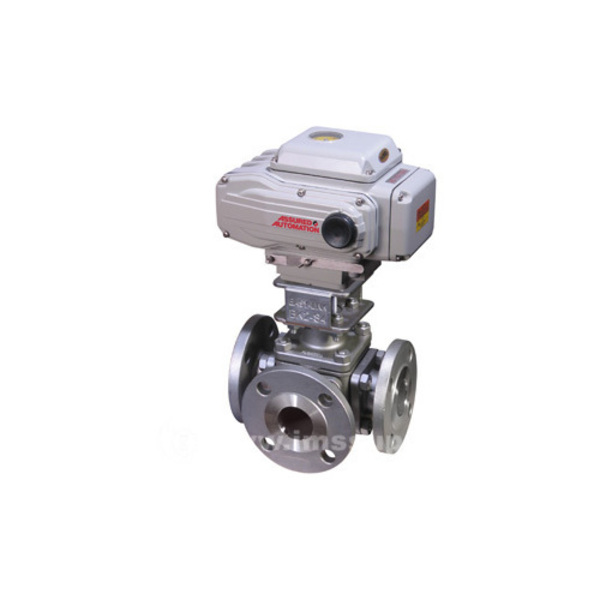

Assured Automation HMPF150CFEK4A MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
- 3-way ball valve
- Body Material: Carbon steel
- Size and Connection: 2 inch 150# ANSI Flange
- Seats: TFM
- Port: Full-port (T shaped bore)
- Flow Plan: E
- Actuator: K4 series weatherproof (NEMA 4) 120VAC; Aluminum alloy housing; Speed 25 Sec 90deg; 100% duty cycle; Internal wire terminals; (model KOUNIC10-AC120-L-SH-IS0) (*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
