ASSURED AUTOMATION H33DGXB7B 33D SERIES 3-WAY BALL VALVE
Starting At: $3,296.72
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: H33DGXB7B
IMS Product Code: 1872023
Packaging: Sold Individually
Description:

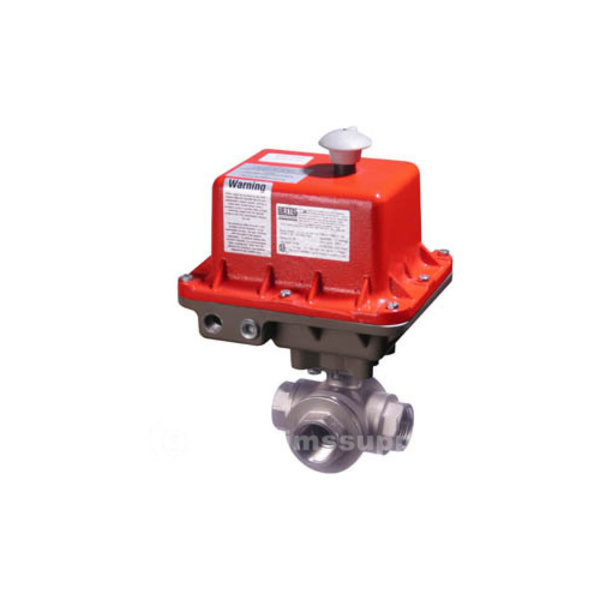

Assured Automation H33DGXB7B 33D Series Stainless Steel, 3-way Ball Valve, Full Port with NPT Connections
- Body Material: 316 Stainless Steel
- Size and Connection: 2 inch NPT
- Seats and Seal Material: RPTFE
- Port: Full-port (T shaped bore)
- Flow Plan: G
- Actuator: B7 series explosion Proof (NEMA 4,4X,7) 24VDC; Speed 7 Sec 90deg; 100% duty cycle; Internal wire terminals; (model BEEM510F-07-C7-11-001) (*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
