ASSURED AUTOMATION GPTPENEM PTP SERIES PVC, 3-WAY BALL VALVE
Starting At: $248.92
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: GPTPENEM
IMS Product Code: 1875083
Packaging: Sold Individually
Description:

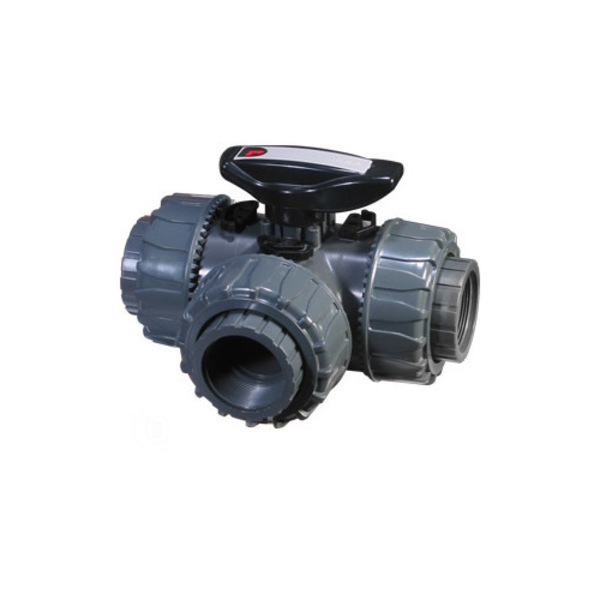

Assured Automation GPTPENEM PTP Series PVC, Full Port, 3-way Ball Valve
The PTP Series 3-Way Ball Valves can be used for flow diverting, mixing, or on/off isolation. They will replace a Tee + 2 valve linkage assembly at reduced cost and space, along with shorter installation and maintenance time. The patented seat stop carrier allows for in-line microadjustment of the ball seating, and features o-ring cushioning to minimize wear and prevent seizing. The PTP also includes a patented DUAL BLOCK® locking union nut system, which ensures the nuts are held in position even under severe service conditions such as high vibration or thermal expansion. Integral mounting flange and bracketing allows for direct mount of actuator. PTP Series 3-Way Ball Valves are part of our complete range of valves and flow meters, engineered and manufactured to strict quality, performance, and dimensional standards.
Specifications:
Body Material: PVC
Size and Connection: 1 1/2 inch NPT
Seats: PTFE
Seals: EPDM
Port: Full-port (T shaped bore)
Flow Plan: E
Actuator: Manual Tee handle operator (none)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
