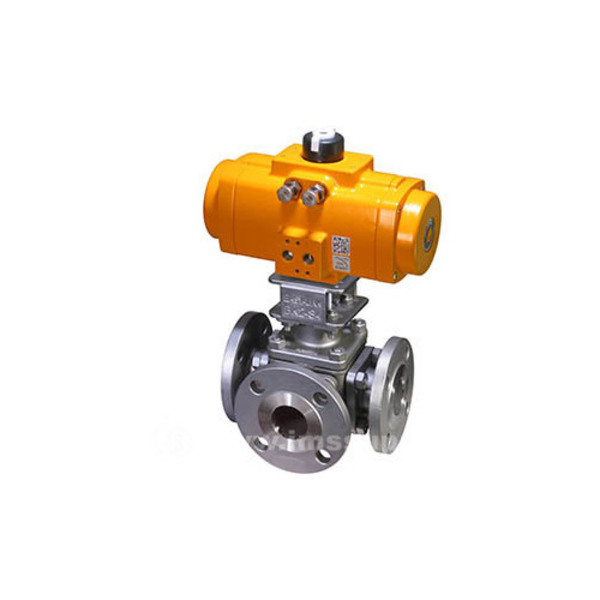

ASSURED AUTOMATION GMPF300SFGF8S1 MPF SERIES SS 3-WAY BALL VALVE
Starting At: $2,597.98
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: GMPF300SFGF8S1
IMS Product Code: 1873256
Packaging: Sold Individually
Description:
Assured Automation GMPF300SFGF8S1 MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
Body Material: Stainless steel
Size and Connection: 1 1/2 inch 300# ANSI Flange
Seats: TFM
Port: Full-port (T shaped bore)
Flow Plan: G
Actuator: F series rack and pinion actuator, spring return (Fail to Position 1) sized for use with 80 psi supply air (ELFSA200-4)
(*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
