ASSURED AUTOMATION GMPF300SFAS4UV MPF SERIES SS 3-WAY BALL VALVE
Starting At: $2,498.02
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: GMPF300SFAS4UV
IMS Product Code: 1873366
Packaging: Sold Individually
Description:

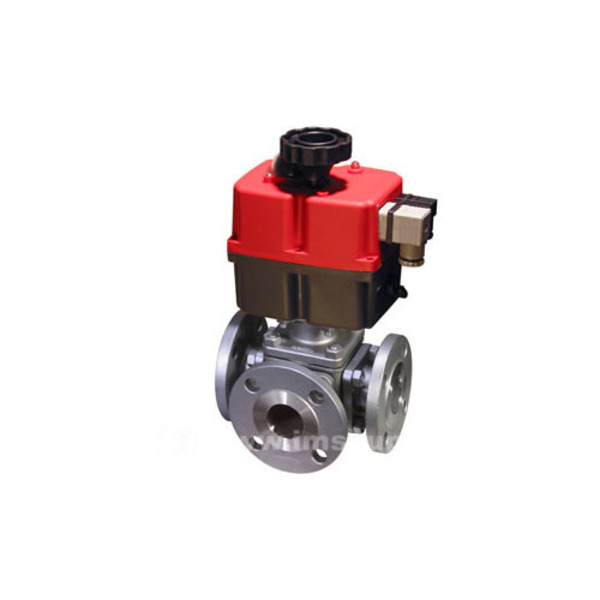

Assured Automation GMPF300SFAS4UV MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
Body Material: Stainless steel
Size and Connection: 1 1/2 inch 300# ANSI Flange
Seats: TFM
Port: Full-port (L shaped bore)
Flow Plan: A
Actuator: S4 series weatherproof (NEMA 4/4X) Universal Voltage (24 to 240VAC/DC); Anti-corrosive polyamide housing; Speed 30 Sec 90deg; 75% duty cycle; PG9 cord grip DIN connectors; (model S40750UV19)
(*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
