ASSURED AUTOMATION EP2CVNXV4A P2 SERIES PVC, 2-WAY BALL VALVE
Starting At: $525.28
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: EP2CVNXV4A
IMS Product Code: 1851033
Packaging: Sold Individually
Description:

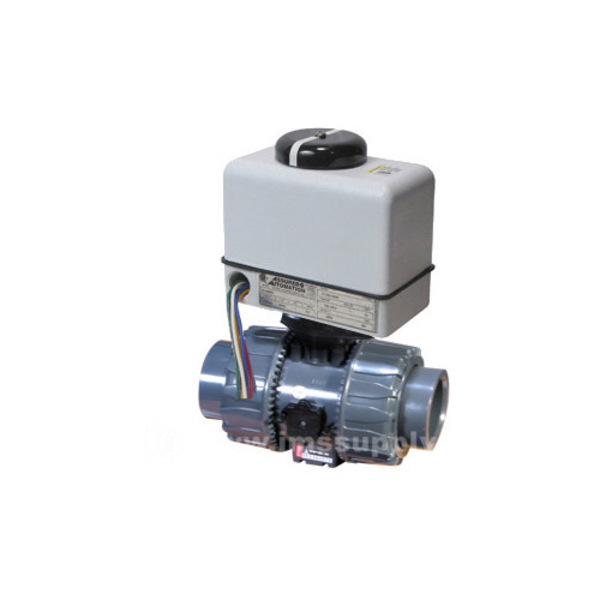

Assured Automation EP2CVNXV4A P2 Series PVC, Full Port, 2-Way Ball Valve
The P2 Series Ball Valves offer a variety of advanced features such as the patented seat stop carrier, a high quality stem and ball support system, and a multifunctional locking handle. The new DUAL BLOCK® system locks the union nuts preventing back-off due to vibration or thermal cycling. Deep grooves, thick o-rings, and cushioned PTFE seats contribute to strong seals at pressures up to 232 PSI while an integral mounting flange and support bracketing combine for simple adaptation for actuation and anchoring. A full range of accessory items are available including limit switches, solenoid valves, positioners and manual override devices.
Specifications:
- Body Material: CPVC
- Size and Connection: 1 inch NPT
- Seats: PTFE
- Seals: Viton®
- Port: Full-port
- Actuator: V4 series weatherproof (NEMA 4/4X) 120VAC; Epoxy coated aluminum housing; Speed 3 Sec 90deg; 75% duty cycle; External wiring leads through 1/2 in. NPT conduit entry; (model EV1S1V1)(*actuator sized for applications up to 232 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
