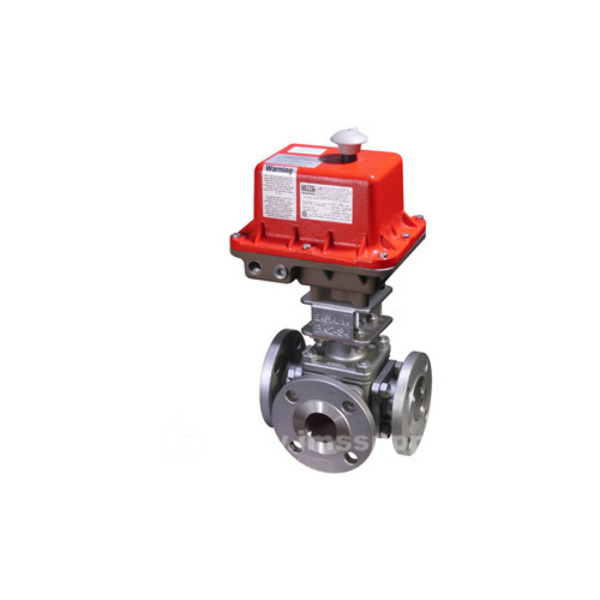

ASSURED AUTOMATION EMPF150SFDB7B MPF SERIES SS 3-WAY BALL VALVE
Starting At: $2,453.92
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: EMPF150SFDB7B
IMS Product Code: 1872930
Packaging: Sold Individually
Description:
Assured Automation EMPF150SFDB7B MPF Series Stainless Steel 3-way Ball Valve Full Port
One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.
Specifications:
- Body Material: Stainless steel
- Size and Connection: 1 inch 150# ANSI Flange
- Seats: TFM
- Port: Full-port (T shaped bore)
- Flow Plan: D
- Actuator: B7 series explosion Proof (NEMA 4,4X,7) 24VDC; Speed 30 Sec 90deg; 100% duty cycle; Internal wire terminals; (model BEEM300F-30-C7-11-001) (*actuator sized for applications up to 300 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
